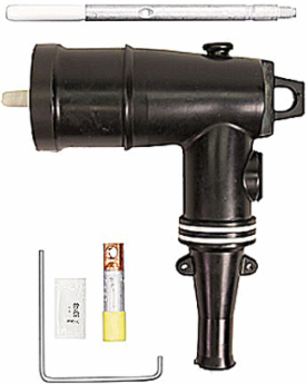

Thomas & Betts 161LR-B5230-S Loadbreak Elbow Connector
- MPN: 161LR-B5230-S
- UPC: 075114324564
- PPN: T-B-161LR-B5230-S
CAD
$261.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15kV, 200 Amp, Loadbreak Elbow without Test Point, Cable Insulation Diameter 0.635 to 0.905 inches (16.13-22.99 mm), Bi-Metal Compression Lug, Conductor Size Stranded/Compressed #1, Solid/Compact 1/0. S is for Cold Shrinkable Jacket Seal.
Specifications
Packaging
- Outer Quantity
- 1
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)10.5x19.12x12.5
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation, Provision for ground wire connection. Wide cable range with minimum number of sizes.
- Standard
- ANSI/IEEE Standard 386
- Conductor Range
- Conductor Size Stranded/Compressed #1, Solid/Compact 1/0.
- Color
- Black
- Amperage Rating
- 200 Amps
- Temperature Rating
- -20 Degrees C to +65 Degrees C
- Consist Of
- Includes Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Bail Assembly, Tube of Lubricant, Installation Instructions, Crimp Chart and V.D. Cap-Peroxide.
IGCC4586 Electrical connector assembly
TypeLoadbreak Elbow Connector
Application15kV, 200 Amp Loadbreak Connection.
SizeCable Insulation Diameter 0.635 inch to 0.905 inch.
MaterialHousing - EPDM Rubber
Voltage Rating15kV
InsulationYes, EPDM Rubber
Environmental ConditionsFully Submersible
