Thomas & Betts 168ELR-6689-5210 Loadbreak Repair Elbow Connector with Test Point
- MPN: 168ELR-6689-5210
- UPC: 783786492299
- PPN: T-B-168ELR-6689-5210
CAD
$773.50
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15kV 200 Amp, Loadbreak Repair Elbow Connector with Test Point, Repair Elbow has extended length contact and elbow housing resulting in a net gain of 3-1/4 inches in length. Bi-Metal Contact. Cable Insulation Diameter 0.665 inch to 0.895 inch. Conductor Size AWG Compressed Stranded #3/Solid #2/mmSquared 26.67.
Specifications
Packaging
| Outer Quantity | 1 |
|---|---|
| Weight Uom | 3.1 lbs. Each |
| Outer Dimensions (inches) | 13x8.75x4 |
|---|
North American Specifications (UNSPSC)
| UNSPSC | 39121421 Electrical connector assembly |
|---|---|
| Brand Name | Elastimold |
| Special Features | Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured insulation, insert and jacket. Provision for hot stick operation, Provision for ground wire connection. Wide cable range with minimum number of sizes. Extended Length Housing and Compression Lug - plus 3-1/4 inch (82.6mm). |
| Standard | ANSI/IEEE Standard 386 |
| Connection | Compression/Crimp |
| Material | Housing - EPDM Rubber |
| Voltage Rating | 15kV |
| Insulation | Yes, EPDM Rubber |
| Environmental Conditions | Fully Submersible |
| IGCC | 4586 Electrical connector assembly |
|---|---|
| Type | Loadbreak Repair Elbow Connector with Test Point |
| Application | Designed for connecting to and operating 15kV Class, 95kV BIL apparatus. |
| Size | Width 7.95 inches, Length 11.71 inches from bottom to center of Bushing. |
| Conductor Range | Conductor Size #3 Compressed Stranded, #2 Solid, mmSquared 26.67. |
| Color | Black |
| Amperage Rating | 200 Amps |
| Temperature Rating | -20 Degrees C to +65 Degrees C |

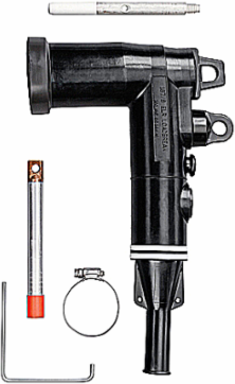

| Consist Of | Includes Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Tube of Lubricant, Installation Instructions, Crimp Chart and V.D. Cap-Peroxide. |
