Thomas & Betts 167ELR-7495-240 Loadbreak Repair Elbow Connector

MPN: 167ELR-7495-240
UPC: 783786653423
PPN: T-B-167ELR-7495-240

$707.48

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

15kV 200 Amp, Loadbreak Repair Elbow Connector, Cable Insulation Diameter 0.740 inch to 0.950 inch. Conductor Size AWG Compressed Stranded 1/0 /Solid 2/0 /mmSquared 53.49.

Specifications

North American Specifications (UNSPSC)

UNSPSC	39121421 Electrical connector assembly
Brand Name	Elastimold
Special Features	Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured insulation, insert and jacket. Provision for hot stick operation, Provision for ground wire connection. Wide cable range with minimum number of sizes. Extended Length Housing and Compression Lug - plus 3-1/4 inch (82.6mm).
Standard	ANSI/IEEE Standard 386
Connection	Compression/Crimp
Material	Housing - EPDM Rubber
Voltage Rating	15kV
Insulation	Yes, EPDM Rubber
Environmental Conditions	Fully Submersible

IGCC	4586 Electrical connector assembly
Type	Loadbreak Repair Elbow Connector
Application	Designed for connecting to and operating 15kV Class, 95kV BIL apparatus.
Size	Width 7.10 inch, Length 11.70 inch from bottom to center of probe.
Conductor Range	Conductor Size 1/0 Compressed Stranded, 2/0 Solid, mmSquared 53.49.
Color	Black
Amperage Rating	200 Amps
Temperature Rating	-20 Degrees C to +65 Degrees C

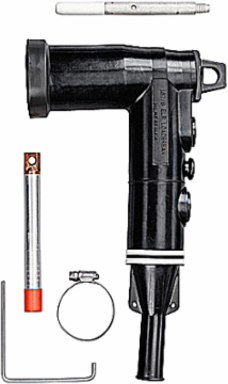

Consist Of	Includes Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Tube of Lubricant, Installation Instructions, Crimp Chart.
