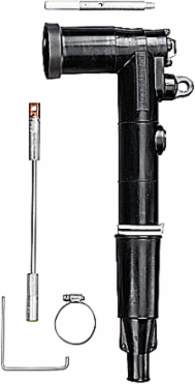

Thomas & Betts 168RLR-F-5200 Loadbreak Replacement Elbow Connector

MPN: 168RLR-F-5200
UPC: 783786362578
PPN: T-B-168RLR-F-5200

$967.02

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

15kV 200 Amp, Loadbreak Replacement Elbow Connector with Test Point. Cable Insulation Diameter 0.640 inch to 0.820 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded #4/Solid #3/mmSquared 21.14.

Specifications

North American Specifications (UNSPSC)

UNSPSC	39121421 Electrical connector assembly
Brand Name	Elastimold
Special Features	Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured insulation, insert and jacket. Provision for hot stick operation, Provision for ground wire connection. Wide cable range with minimum number of sizes. Extended Length Housing and Compression Lug - plus 10-1/2 inch (266.7mm). Non-Corrosive Capacitive Test Point
Standard	ANSI/IEEE Standard 386
Conductor Range	Conductor Size AWG Compressed Stranded #4/Solid #3/mmSquared 21.14.
Color	Black
Amperage Rating	200 Amps
Temperature Rating	-20 Degrees C to +65 Degrees C
Consist Of	Includes Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Tube of Lubricant, Installation Instructions, Crimp Chart, Hose Clamp and V.D. Cap-Peroxide.

IGCC	4586 Electrical connector assembly
Type	Loadbreak Replacement Elbow Connector
Application	Designed for connecting to and operating 15kV Class, 95kV BIL apparatus.
Size	Cable Insulation Diameter 0.640 inch to 0.820 inch.
Material	Housing - EPDM Rubber
Voltage Rating	15kV
Insulation	Yes, EPDM Rubber
Environmental Conditions	Fully Submersible
