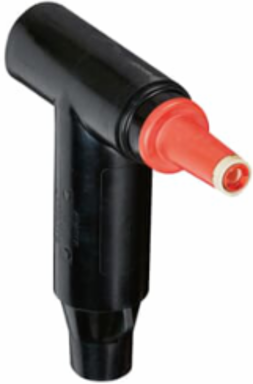

Thomas & Betts 655CETP-K0300 15KV 600A DB COMBO-T K0300
- MPN: 655CETP-K0300
- UPC: 075114335973
- PPN: T-B-655CETP-K0300
- UNSPSC: 39121421
CAD
$1758.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15kv 600 Amp Dead Break Combo T Elbow with 200 Amp Reducing Tap Plug, Stud, Cable adapter and Lug Kit without Test Point. Cable Insulation Diameter 1.090 inch to 1.310 inch. Universal Aluminum Compression Lug. Conductor Size Compressed Stranded 350 kcmil or Solid Compact 400 kcmil.
Specifications
Additional Information
| Application | 600 Amps, 15kV Connector |
|---|---|
| Color | Black |
| Effective Date | 20170324 |
| Includes | Includes Elbow Connector Housing, Stud, Lug, Tube of Lubricant, Cable Adapter, Crimp Chart and Installation Instructions. |
| Material | Housing - EPDM Rubber |
| Product Type | ComboT Elbow |
| Special Functions | Reducing Tap Plug with Stud, Cable Adapter, and Lug |
| Temperature Range | -40 to +65 °C |
| Brand / Label | Elastimold |
|---|---|
| Current Rating | 600 A |
| Environmental Conditions | All Weatheronditions °C |
| Insulation Material | Yes, EPDM Rubber |
| Product Name | 15KV 600A COMBO T NO-SEALING KIT |
| Size | 13.31 inches width, 10.88 inch bottom edge to center of bushing. |
| Standards | ANSI/IEEE Standard 386 |
| Voltage Rating | 15 kV |
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4586 >> Electrical connector assembly |
|---|
