Thomas & Betts 655LRTP-H0290 15KV 600A DB S-OP CONN H0290
- MPN: 655LRTP-H0290
- UPC: 783786431953
- PPN: T-B-655LRTP-H0290
- UNSPSC: 39121421
CAD
$1199.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

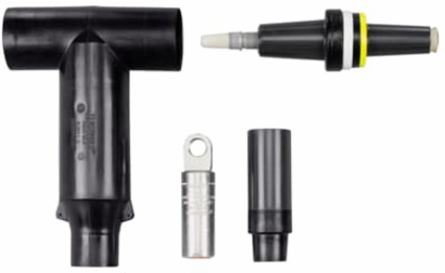

600 Amp, 15kV, Deadbreak Stick-Op Connector Kit, Cable Insulation Diameter 0.850 inch to 1.050 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 300 /Compacted Solid 350 /mmSquared Compact 150.
Specifications
Additional Information
| Application | Connect 600 Amp interface to 200 Amp Loadbreak Tap |
|---|---|
| Color | Black |
| Effective Date | 20040616 |
| Environmental Conditions | All Weatheronditions °C |
| Material | Housing - EPDM Rubber |
| Product Type | Stick Op Reducing Tap Plug Connector |
| Standards | ANSI/IEEE Standard 386 |
| Voltage Rating | 15 kV |
| Brand / Label | Elastimold |
|---|---|
| Current Rating | 600 to 200 A |
| Enclosure Type | Yes, EPDM Rubber |
| Insulation Material | Yes, EPDM Rubber |
| Product Name | ELECTRICAL CONNECTOR,>1000V |
| Special Functions | Reducing Tap Plug 600 to 200 Amps. Provides an External Visible Break by Hotstick Removal of the Elbow. |
| Temperature Range | -40 to +65 °C |
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4586 >> Electrical connector assembly |
|---|
