Thomas & Betts 655LRTP-J0300 15KV 600A DB S-OP CONN J0300
- MPN: 655LRTP-J0300
- UPC: 783786630295
- PPN: T-B-655LRTP-J0300
- UNSPSC: 39121421
CAD
$1152.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

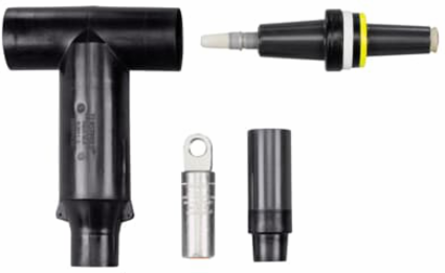

600 Amp, 15KV, Stick Op Connector Kit, Fixed Bolt, Insulating Cap, Stick Op Load Break Reducing Tap Plug, Elbow Housing, Cable Adapter and Threaded Lug, Cable Insulation Diameter 0.980 inch to 1.180 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 350 /Compacted Solid 400 /mmSquared Compact 185.
Specifications
Additional Information
| Application | Connect 600 Amp interface to 200 Amp Loadbreak Tap |
|---|---|
| Color | Black |
| Effective Date | 19980115 |
| Environmental Conditions | All Weatheronditions °C |
| Material | Housing - EPDM Rubber |
| Product Type | Stick Op Reducing Tap Plug Connector |
| Standards | ANSI/IEEE Standard 386 |
| Voltage Rating | 15 kV |
| Brand / Label | Elastimold |
|---|---|
| Current Rating | 600 to 200 A |
| Enclosure Type | Yes, EPDM Rubber |
| Insulation Material | Yes, EPDM Rubber |
| Product Name | electrical connector,>1000v" |
| Special Functions | Reducing Tap Plug 600 to 200 Amps. Provides an External Visible Break by Hotstick Removal of the Elbow. |
| Temperature Range | -40 to +65 °C |
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4586 >> Electrical connector assembly |
|---|
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
