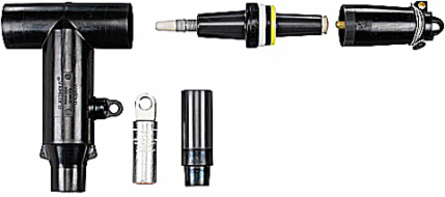

Thomas & Betts 656LRTP-J2280-DRG Stick Op Reducing Tap Plug Connector with Test Point
- MPN: 656LRTP-J2280-DRG
- UPC: 783786771431
- PPN: T-B-656LRTP-J2280-DRG
CAD
$1577.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
600 Series Elbows with IEEE 386 Capacitive Test Points, 600 Amp, 15kV, Stick-OP Elbow Connector Kit, Insulated Cap. Cable Insulation Diameter 0.980 inch to 1.180 inch. Copper Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 250 /Compacted Solid 300.
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39121421 Electrical connector assembly |
|---|---|
| Brand Name | Elastimold |
| Special Features | Reducing Tap Plug 600 to 200 Amps. Test Point. Provides an External Visible Break by Hotstick Removal of the Elbow. |
| Standard | ANSI/IEEE Standard 386 |
| Material | Housing - EPDM Rubber |
| Enclosure | Yes, EPDM Rubber |
| Amperage Rating | 600/200 Amps |
| Temperature Rating | -40 degrees to +65 degrees Celsius |
| IGCC | 4586 Electrical connector assembly |
|---|---|
| Type | Stick Op Reducing Tap Plug Connector with Test Point |
| Application | Connect 600 Amp interface to 200 Amp Loadbreak Tap |
| Conductor Range | Conductor Size AWG or kcmil, Compressed Stranded 250 /Compacted Solid 300. |
| Color | Black |
| Voltage Rating | 15kV |
| Insulation | Yes, EPDM Rubber |
| Environmental Conditions | All Weather |
Packaging
| Outer Quantity | 1 |
|---|---|
| Weight Uom | 1 lbs. Each |
| Outer Dimensions (inches) | 1x1x1 |
|---|
