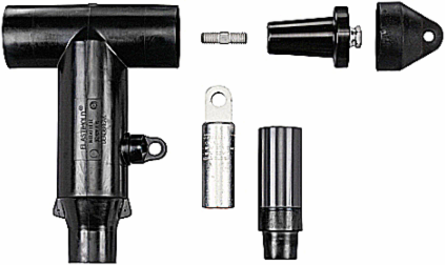

Thomas & Betts K656LRTPFB-M5380 Stick Op Reducing Tap Plug Connector with Test Point
- MPN: K656LRTPFB-M5380
- UPC: 783786787982
- PPN: T-B-K656LRTPFB-M5380
CAD
$2097.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
600 Amp, 25kV, Deadbreak, Stick-Op Connector Kit with Test Point, Fixed Bolt, Cable Insulation Diameter 1.370 inch to 1.630 inch. Bi-Metal Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900.
Specifications
Packaging
| Outer Quantity | 1 |
|---|---|
| Weight Uom | 1 lbs. Each |
| Outer Dimensions (inches) | 4.37x13.25x10.5 |
|---|
North American Specifications (UNSPSC)
| UNSPSC | 39121421 Electrical connector assembly |
|---|---|
| Brand Name | Elastimold |
| Special Features | Reducing Tap Plug 600 to 200 Amps. Test Point. Provides an External Visible Break by Hotstick Removal of the Elbow. |
| Standard | ANSI/IEEE Standard 386 |
| Material | Housing - EPDM Rubber |
| Enclosure | Yes, EPDM Rubber |
| Amperage Rating | 600/200 Amps |
| Temperature Rating | -40 degrees to +65 degrees Celsius |
| IGCC | 4586 Electrical connector assembly |
|---|---|
| Type | Stick Op Reducing Tap Plug Connector with Test Point |
| Application | Connect 600 Amp interface to 200 Amp Loadbreak Tap |
| Conductor Range | Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900. |
| Color | Black |
| Voltage Rating | 15kV |
| Insulation | Yes, EPDM Rubber |
| Environmental Conditions | All Weather |
