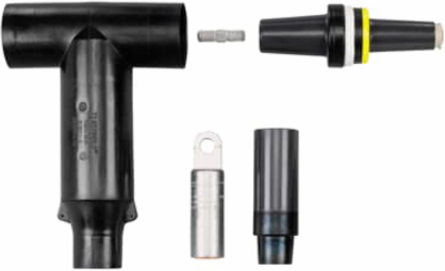

Thomas & Betts 655ETP-G0230-S 15KV 600A ETP ELBOW KIT G0230-S
- MPN: 655ETP-G0230-S
- UPC: 783786647736
- PPN: T-B-655ETP-G0230-S
- UNSPSC: 39121421
CAD
$1034.73
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15kV 600 Series Deadbreak Elbow TAP PLUG Connector, Cable Insulation Diameter 0.760 inch to 0.950 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded #1/ Compacted Solid 1/0 /mmSquared Compact 50. 200ECS Cold-Shrinkable Jacket Seal Included.
Specifications
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4586 >> Electrical connector assembly |
|---|
Additional Information
| Application | 600 Amps, 15kV |
|---|---|
| Color | Black |
| Current Rating | 600 A |
| Insulation Material | EPDM Rubber |
| Product Name | electrical plug>1000v |
| Size | Cable Insulation Diameter 0.760 inch to 0.950 inch. |
| Standards | ANSI/IEEE Standard 386 |
| Voltage Rating | 15 kV |
| Brand / Label | Elastimold |
|---|---|
| Connection Type | Compression |
| Effective Date | 19980115 |
| Material | Housing - EPDM Rubber |
| Product Type | Window-Op Connector |
| Special Functions | Includes Sealing Kit |
| Temperature Range | -40 to +65 °C |
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
