Thomas & Betts 655ETP-M0380-DRG 15KV 600A ETP ELBOW KIT M0380DRG
- MPN: 655ETP-M0380-DRG
- UPC: 783786622054
- PPN: T-B-655ETP-M0380-DRG
- UNSPSC: 39121421
CAD
$1140.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

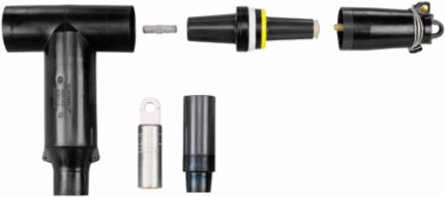

15kV 600 Series Deadbreak Elbow TAP PLUG Connector, Test and Ground Connector Kit, Test and Ground kit includes - Insulated Cap, Test and Ground reducing tap plug, 600 series Elbow housing, cable adapter and 0370 style compression lug. Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900.
Specifications
Additional Information
- Application
- 600 Amps, 15kV
- Color
- Black
- Current Rating
- 600 A
- Environmental Conditions
- All Weatheronditions °C
- Insulation Material
- EPDM Rubber
- Product Name
- electrical plug>1000v
- Size
- 10.88 inch from Bottom to Center of Bushing, 8.34 inch wide
- Standards
- ANSI/IEEE Standard 386
- Voltage Rating
- 15 kV
Brand / LabelElastimold
Connection TypeCompression
Effective Date19980108
IncludesElbow Housing, Compression Lug, Stud, Elbow Tap Plug, Insulated Cap, Lubricant, Cable Adapter, Installation Instructions, Crimp Chart
MaterialHousing - EPDM Rubber
Product TypeWindow-Op Connector
Special FunctionsIncludes Insulated Cap
Temperature Range-40 to +65 °C
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
