Thomas & Betts 655ETP-H0270 15KV 600A ETP ELBOW KIT H0270
- MPN: 655ETP-H0270
- UPC: 783786644049
- PPN: T-B-655ETP-H0270
- UNSPSC: 39121421
CAD
$986.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

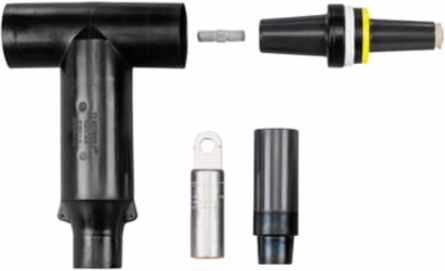

15kV 600 Series Deadbreak Elbow TAP PLUG Connector, Cable Insulation Diameter 0.850 inch to 1.050 inch. Conductor Size AWG or kcmil, Compressed Stranded 4/0 /Compacted Solid 250 /mmSquared Compact 125. Aluminum Compression Lug.
Specifications
Additional
| Voltage | 15 kV |
|---|---|
| Cable Insulation Diameter | 0.850 in to 1.050 in |
| Size | Cable Insulation Diameter 0.850 in to 1.050 in |
| Temperature Range | -40 to +65 C |
| Material | Housing - EPDM Rubber |
| Country of Origin | United States (US) |
| Current Rating | 600 A |
|---|---|
| Conductor Size | 4/0 AWG, 250 kcmil, 125 mm2 |
| Connection Type | Compression |
| Insulation Material | EPDM Rubber |
| Standards | ANSI/IEEE Standard 386 |
| Color | Black |
