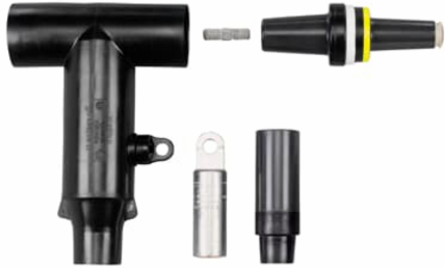

Thomas & Betts 656ETP-H0270 15KV 600A ETP ELBOW KIT TP H0270
- MPN: 656ETP-H0270
- UPC: 783786399130
- PPN: T-B-656ETP-H0270
- UNSPSC: 39121421
CAD
$1036.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
600 Amp, Dead Break, Elbow Connector, Window-Op Connector Kit with Capacitive Test Point, 15KV, Cable Insulation Diameter 0.850 inch to 1.050 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 4/0 /Solid 250 /mmSquared 126.67.
Specifications
Additional
| Voltage | 15 kV |
|---|---|
| Temperature Range | -40 to +65 C |
| Cable Insulation Diameter | 0.85 in to 1.05 in |
| Connection Type | Compression |
| Insulation Material | EPDM Rubber |
| Special Functions | Capacitive Test Point |
| Country of Origin | United States (US) |
| Amperage | 600 A |
|---|---|
| Current Rating | 600 A |
| Size | Cable Insulation Diameter 0.850 in to 1.050 in |
| Material | Housing - EPDM Rubber |
| Standards | ANSI/IEEE Standard 386 |
| Color | Black |
| Brand | Elastimold |
