Thomas & Betts 656LRTP-M0380-DRG 15KV 600A STICK OP KIT
- MPN: 656LRTP-M0380-DRG
- UPC: 075114388306
- PPN: T-B-656LRTP-M0380-DRG
- UNSPSC: 39121421
CAD
$1365.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

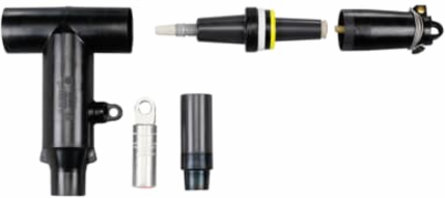

600 Series Elbows with IEEE 386 Capacitive Test Points, 600 Amp, 15kV, Stick-OP Elbow Connector Kit with Insulated Cap. Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Compression Lug. Conductor Size Compressed/Stranded 700/750 kcmil or Compact/Solid 900. Includes Elbow Housing, Reducing Tap Plug, Cable Size Adapter, Compression Lug, Lubricant, Instruction Sheet and Crimp Chart.
Features
- Reducing Tap Plug 600 to 200 Amps. Test Point. Provides an External Visible Break by Hotstick Removal of the Elbow
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Buy American Act (BAA) Compliant | Contact Manufacturer |
| Brand Name | ELASTIMOLD |
| Standard | ANSI/IEEE Standard 386 |
| Material | Housing - EPDM Rubber |
| Voltage Rating | 15 kV |
| Amperage Rating | 600 to 200 A |
| Environmental Conditions | All Weather Conditions |
| American Recovery and Reinvestment Act (ARRA) Compliant | Contact Manufacturer |
|---|---|
| IGCC | 4586 |
| Application | Connect 600 Amp interface to 200 Amp Loadbreak Tap |
| Conductor Range | 700 to 750 kcmil , 900 kcmil |
| Enclosure | Yes EPDM Rubber |
| Color | Black |
| Insulation | Yes EPDM Rubber |
