Thomas & Betts 655ETP-LAC02-DRG 15KV 600A WINDOW OP KIT
- MPN: 655ETP-LAC02-DRG
- UPC: 075114415323
- PPN: T-B-655ETP-LAC02-DRG
- UNSPSC: 39121421
CAD
$1218.33
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

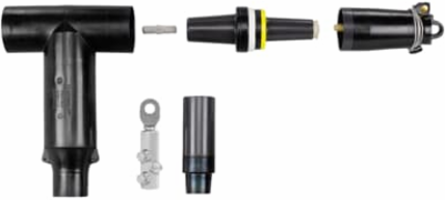

15kV 600 Series Deadbreak Elbow TAP PLUG Connector, Window OP Kit, Test and Ground Connector Kit, Test and Ground kit includes - Insulated Cap, Test and Ground reducing tap plug, 600 series Elbow housing, cable adapter. Cable Insulation Diameter 1.180 inch to 1.465 inch. Tin Plated Aluminum ShearBolt Connector. Conductor Size 4/0 Stranded/Compressed/Compact AWG to 500 kcmil Stranded/Compressed/Compact.
Features
- ShearBolt Connector, Includes Insulated Cap
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Buy American Act (BAA) Compliant | Contact Manufacturer |
| Brand Name | ELASTIMOLD |
| Connection | Mechanical |
| Size | Cable Insulation Diameter 1.180 inch to 1.465 inch |
| Material | Housing - EPDM Rubber , Tin-Plated Aluminum Connector |
| Color | Black |
| Insulation | EPDM Rubber |
| American Recovery and Reinvestment Act (ARRA) Compliant | Contact Manufacturer |
|---|---|
| IGCC | 4586 |
| Application | 600 Amps, 15 kV |
| Standard | ANSI/IEEE Standard 386 |
| Conductor Range | 4/0 to 500 kcmil |
| Voltage Rating | 15 kV |
| Amperage Rating | 600 A |
| Temperature Rating | -40 to +65 C |
