Thomas & Betts 656ETP-MAC04-DRG 15KV 600A WINDOW OP W-SHEAR BOLT
- MPN: 656ETP-MAC04-DRG
- UPC: 075114407403
- PPN: T-B-656ETP-MAC04-DRG
- UNSPSC: 39121421
CAD
$1426.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

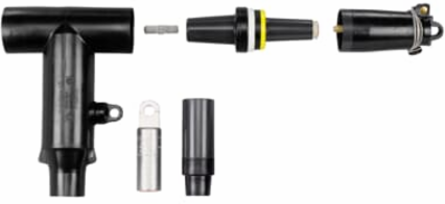

15kV, 600 Amp, Elbow Tap Plug, Test and Ground Connector Kit with Test Point. Includes Insulated Cap, Test and Ground Reducing Tap Plug, 600 Series Elbow Housing, Cable Adapter and Tin-Plated Aluminum ShearBolt Lug. Cable Insulation Diameter M - 1.37 to 1.63 inch. Conductor Size AC04 - 700 to 1250 kcmil Stranded/Compressed/Solid/Compact.
Features
- Capacitive Test Point, Insulated Cap
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Buy American Act (BAA) Compliant | Contact Manufacturer |
| Brand Name | Elastimold |
| Connection | Shear Bolt |
| Size | Cable Insulatio Diameter M - 1.37 to 1.63 inch |
| Material | Housing - EPDM Rubber |
| Color | Black |
| Insulation | Yes, EPDM Rubber |
| American Recovery and Reinvestment Act (ARRA) Compliant | Contact Manufacturer |
|---|---|
| IGCC | 4586 |
| Application | 600 Amps, 15kV |
| Standard | ANSI/IEEE Standard 386 |
| Conductor Range | 700 to 1250 kcmil |
| Voltage Rating | 15 kV |
| Amperage Rating | 600 A |
| Temperature Rating | -40 to +65 C |
