Thomas & Betts 656ETP-N-AC04-DRG Window-Op Connector
- MPN: 656ETP-N-AC04-DRG
- UPC: 075114354264
- PPN: T-B-656ETP-N-AC04-DRG
CAD
$1428.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

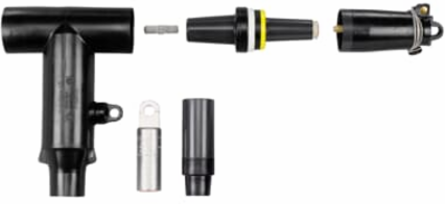

15kV, 600 Amp, Elbow Tap Plug, Test and Ground Connector Kit with Test Point. Includes Insulated Cap, Test and Ground Reducing Tap Plug, 600 Series Elbow Housing, Cable Adapter and Tin-Plated Aluminum ShearBolt Lug. Cable Insulation Diameter N - 1.515 to 1.780 inch. Conductor Size AC04 - 750 to 1250 kcmil Stranded/Compressed/Solid/Compact.
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39121421 Electrical connector assembly |
|---|---|
| Brand Name | Elastimold |
| Special Features | Capacitive Test Point, Insulated Cap |
| Standard | ANSI/IEEE Standard 386 |
| Connection | Shear Bolt |
| Material | Housing - EPDM Rubber |
| Voltage Rating | 15kV |
| Insulation | Yes, EPDM Rubber |
| IGCC | 4586 Electrical connector assembly |
|---|---|
| Type | Window-Op Connector |
| Application | 600 Amps, 15kV |
| Size | Cable Insulation Diameter 1.515 inch to 1.780 inch. |
| Conductor Range | AC04 Conductor Size 750 to 1250 kcmil |
| Color | Black |
| Amperage Rating | 600 Amps |
| Temperature Rating | -20 Degrees C to +65 Degrees C |
Packaging
| Outer Quantity | 1 |
|---|---|
| Weight Uom | 1 lbs. Each |
| Outer Dimensions (inches) | 4.37x13.25x10.5 |
|---|
