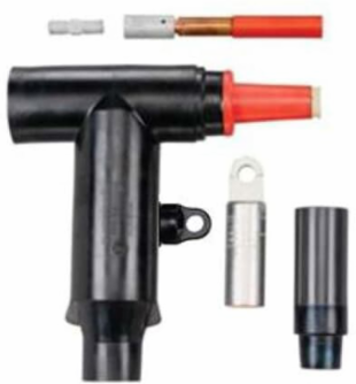

Thomas & Betts 656CETP-J0280 15KV COMBO T ARRANGEMENT
- MPN: 656CETP-J0280
- UPC: 075114167369
- PPN: T-B-656CETP-J0280
- UNSPSC: 39121421
CAD
$2074.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15kV, 600 Amp Combo T, carries current. Combo Elbow with bus, stud and cable adapter, lug and insulated cap kit. Cable Insulation Diameter 0.980 inch to 1.180 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 250 /Compacted Solid 300.
Specifications
Additional Information
| Application | 600 Amps, 15kV Connector |
|---|---|
| Color | Black |
| Effective Date | 20140319 |
| Includes | Includes Elbow Connector Housing, Stud, Lug, Tube of Lubricant, Cable Adapter, Crimp Chart and Installation Instructions. |
| Material | Housing - EPDM Rubber |
| Product Type | ComboT Elbow |
| Special Functions | Reducing Tap Plug with Stud, Cable Adapter, and Lug. Test Point |
| Temperature Range | -40 to +65 °C |
| Brand / Label | Elastimold |
|---|---|
| Current Rating | 600 A |
| Environmental Conditions | All Weatheronditions °C |
| Insulation Material | Yes, EPDM Rubber |
| Product Name | ELECTRICAL CONNECTOR,>1000V |
| Size | 13.31 inches width, 10.88 inch bottom edge to center of bushing. |
| Standards | ANSI/IEEE Standard 386 |
| Voltage Rating | 15 kV |
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4586 >> Electrical connector assembly |
|---|
