Thomas & Betts 675CETP-L2330 15KV 900A COMBO T N-SEALING KIT
- MPN: 675CETP-L2330
- UPC: 075114339490
- PPN: T-B-675CETP-L2330
- UNSPSC: 39121421
CAD
$2508.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

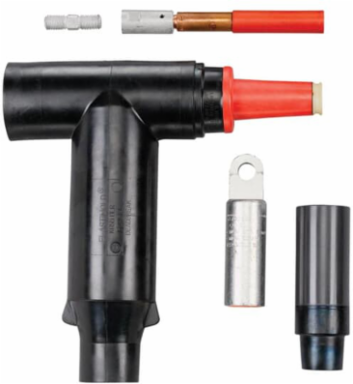

15kV, 200/900 Amp Series Loadbreak, ComboT Elbow with 200 Amp Reducing Tap Plug, Stud, Cable Adapter and Lug Kit without Test Point. Cable Insulation Diameter 1.180-1.465 inches (30.0-37.2mm). Copper Lug, 330-Conductor Size 500 kcmil Stranded/Compressed or 600 kcmil Solid/Compact or 250/300 mmsq. Includes Elbow Housing, Stud, Compression Lug, Tube of Lubricant, Cable Adapter, Installation Instructions and Crimp Chart. No Sealing Kit.
Specifications
Additional Information
- Application
- 900 Amps, 15kV Connector
- Color
- Black
- Effective Date
- 20170428
- Includes
- Includes Elbow Connector Housing, Stud, Lug, Tube of Lubricant, Cable Adapter, Crimp Chart and Installation Instructions.
- Material
- Housing - EPDM Rubber
- Product Type
- ComboT Elbow
- Special Functions
- Reducing Tap Plug with Stud
- Temperature Range
- -40 to +65 °C
Brand / LabelElastimold
Current Rating900 A
Environmental ConditionsAll Weatheronditions °C
Insulation MaterialYes, EPDM Rubber
Product NameELECTRICAL CONNECTOR,>1000V
Size13.31 inches width, 10.88 inch bottom edge to center of bushing.
StandardsANSI/IEEE Standard 386
Voltage Rating15 kV
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
