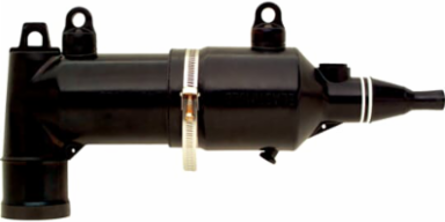

Thomas & Betts 168FLR1B5240 15KV FUSE ELBOW SIZE 1
- MPN: 168FLR1B5240
- UPC: 075114214896
- PPN: T-B-168FLR1B5240
- UNSPSC: 39121421
CAD
$2419.67
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 8.3kV, Fuse Test Port - Two Capacitive Test Ports, Small Housing, Cable Insulation Diameter 0.635 inch - 0.905 inch / 16-23mm, Bi-Metal Conductor size 1/0 AWG Stranded/Compressed, 2/0 AWG Solid/Compact.
Specifications
Additional Information
| Application | Protect Light Duty Underground Distribution Systems |
|---|---|
| Color | Black |
| Effective Date | 20150120 |
| Material | EPDM Rubber |
| Product Type | Loadbreak Fused Elbow Connector |
| Special Functions | Full-Range Current-Limiting Fusing with 50kA Interrupting Capability. Hotstick Operable 15kV Loadbreak Elbow Switching. |
| Temperature Range | -40 to +65 °C |
| Brand / Label | Elastimold |
|---|---|
| Current Rating | 200 A |
| Insulation Material | Yes, EPDM Rubber |
| Product Name | ELECTRICAL CONNECTOR,>1000V |
| Size | Length 16.87 inches from bottom to center of Bushing |
| Standards | IEEE 386, ANSI C37.40, ANSI C37.41, ANSI C37.47 |
| Voltage Rating | 8.3 kV |
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4586 >> Electrical connector assembly |
|---|
