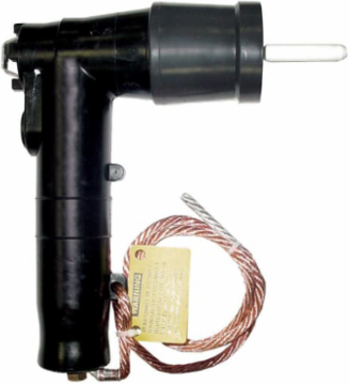

Thomas & Betts 168AFLR1-C5250 15KV 200A FUSE ELBOW NO-SEALING
- MPN: 168AFLR1-C5250
- UPC: 075114345521
- PPN: T-B-168AFLR1-C5250
- UNSPSC: 39121421
CAD
$2585.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 8.3kV, Fuse Test Port - Two Direct Test Ports, Small Housing, Cable Insulation Diameter 0.805 inch - 1.060 inch / 20-27mm, Bi-Metal, Conductor size 250 - 2/0 AWG Stranded Compressed, 3/0 AWG Solid/Compact.
Specifications
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Additional Information
- Application
- 8.3kV, 3-45 Amps
- Color
- Black
- Effective Date
- 20170706
- Material
- Housing EPDM Rubber ; Lug BiMetal
- Product Type
- Fuse Housing
- Special Functions
- Two Direct Test Ports, Small Housing
- Temperature Range
- -40 to +65 °C
Brand / LabelElastimold
Connection TypeCompression
Insulation MaterialEPDM Rubber
Product NameELECTRICAL CONNECTOR,>1000V
SizeApproximately 8-7/8 inch wide x 17 inches long
StandardsIEEE 386 Standard
Voltage Rating8.3 kV
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
