Thomas & Betts 656ETP-K0360 15KV WINDOW OP CONNECTOR
- MPN: 656ETP-K0360
- UPC: 075114161947
- PPN: T-B-656ETP-K0360
- UNSPSC: 39121421
CAD
$1039.27
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

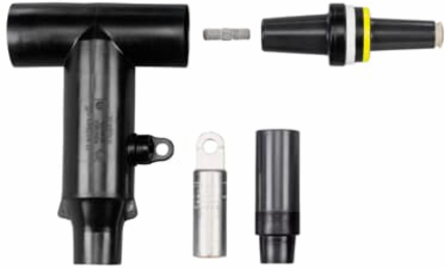

600 Series Elbows with IEEE 386 Capacitive Test Points, 600 Amp, 15kV, Window-Op Connector Kit. Cable Insulation Diameter 1.090 inch to 1.310 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 650 /Compacted Solid 750 /mmSquared Compact 400.
Specifications
Additional Information
| Application | 600 Amps, 15kV |
|---|---|
| Color | Black |
| Current Rating | 600 A |
| Insulation Material | Yes, EPDM Rubber |
| Product Name | ELECTRICAL CONNECTOR,>1000V |
| Size | Cable Insulation Diameter 1.090 inch to 1.310 inch. |
| Standards | ANSI/IEEE Standard 386 |
| Voltage Rating | 15 kV |
| Brand / Label | Elastimold |
|---|---|
| Connection Type | Compression |
| Effective Date | 20140218 |
| Material | Housing - EPDM Rubber |
| Product Type | Window-Op Connector |
| Special Functions | Capacitive Test Point |
| Temperature Range | -40 to +65 °C |
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4586 >> Electrical connector assembly |
|---|
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
