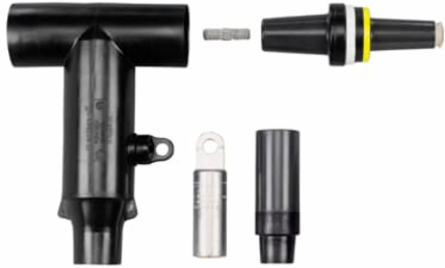

Thomas & Betts 656ETP-M0360 15KV WINDOW OP CONNECTOR KI 600 A
- MPN: 656ETP-M0360
- UPC: 783786381388
- PPN: T-B-656ETP-M0360
- UNSPSC: 39121421
CAD
$1038.70
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
600 Series Elbows with IEEE 386 Capacitive Test Points, 600 Amp, 15kV, Window-Op Connector Kit. Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 650 /Compacted Solid 750 /mmSquared Compact 400.
Specifications
Additional Information
- Application
- 600 Amps, 15kV
- Color
- Black
- Current Rating
- 600 A
- Insulation Material
- Yes, EPDM Rubber
- Product Name
- ELECTRICAL CONNECTOR,>1000V
- Size
- Cable Insulation Diameter 1.370 inch to 1.630 inch.
- Standards
- ANSI/IEEE Standard 386
- Voltage Rating
- 15 kV
Brand / LabelElastimold
Connection TypeCompression
Effective Date20130429
MaterialHousing - EPDM Rubber
Product TypeWindow-Op Connector
Special FunctionsCapacitive Test Point
Temperature Range-40 to +65 °C
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
