Schneider Electric HFLCI16D 16CCT HOMELINE FUSIBLE LOADCENTRE INSERT
- MPN: HFLCI16D
- UPC: 785901975229
- PPN: SCH-HFLCI16D
CAD
$474.02
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description

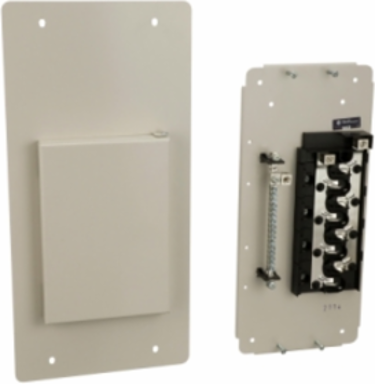

16CCT HOMELINE FUSIBLE LOADCENTRE INSERT
Features
- Engineered specifically as a drop-in replacement interior for legacy Amalgamated Electric Catalog 4212 enclosures, this insert allows you to upgrade obsolete residential fuse setups without tearing out the drywall or replacing the existing metal tub. Measuring 496 mm H x 216 mm W x 72 mm D, it lines up exactly with the original mounting configurations to eliminate structural alterations and drastically reduce code-update labor costs.
- This high-density insert accommodates up to 8 standard 1-inch spaces or expands to support up to 16 tandem circuit breakers, giving you the flexibility to safely divide overloaded circuits. This expanded density provides ample space for modern residential additions, dedicated appliance lines, and secondary sub-panels without requiring a larger physical footprint.
- Designed to seamlessly accommodate Schneider Electric s Canadian Homeline circuit breakers, this loadcentre insert fully supports advanced CAFI, GFI, and dual-function breakers to satisfy current Canadian Electrical Code (CEC) safety regulations. Upgrading to this breaker interior eliminates old-fashioned glass fuses, mitigating fire hazards and drastically lowering insurance liability for homeowners.
- Built with backed-out screws on the fully distributed neutral and ground terminals, this panel assembly lets you slide in wires and torque them down instantly without wasting time unthreading components. The smart layout also features straight-in wiring to minimize complex service entrance cable bends, giving you a clean gutter space and a faster, frustration-free installation.
Documentation & Downloads
Specifications
Additional
- Number of Circuits
- 8
- Number of Tandem Circuit Breakers
- 16
- Compliance
- RoHS Compliant
Number of Spaces8
Enclosure Dimensions496 mm H, 216 mm W, 72 mm D
