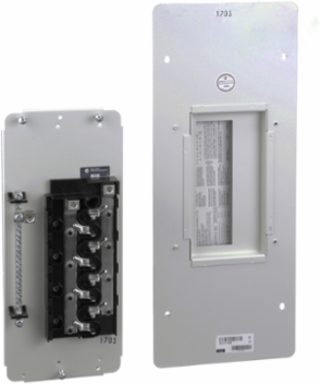

Schneider Electric HFLCIT8AD Loadcentre Insert, 8 Tandem Circuits, 327mm H x 245mm W x 78mm D
- MPN: HFLCIT8AD
- UPC: 785901914877
- PPN: SCH-HFLCIT8AD
CAD
$326.26
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
CHOM Load Centers offer features HOM breakers, ground fault circuit breakers and arc fault interrupters. CHOM Load Centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. CHOM load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This accessory is a Homeline fusible loadcentre insert. The original manufacturer for this insert is Taylor (Crouse Hinds). The original main lug loadcentre catalogue number is NHP0020. Maximum number of standard circuits is 4 while tandem is 8.
Features
- Although designed for a compact enclosure, this insert features 4 physical spaces that support up to 8 tandem circuits. This "high-density" configuration allows homeowners to add modern branch circuits for renovations or new appliances without needing to upgrade to a physically larger, more expensive panelboard.
- By eliminating the need to drill new holes, pull new ground wires, or remove existing branch conductors, this retrofit kit reduces total installation time by up to 80% compared to a full panel swap. The "straight-in" wiring design and included architectural white trim provide a clean, professional finish that instantly updates the look of your utility room or basement.
- Transitioning from old-style fuses to Canadian HomeLineTM circuit breakers significantly reduces the risk of electrical fires caused by over-fusing or loose connections. This CSA-certified system ensures your home meets current safety codes, providing peace of mind and potentially lowering your homeowner's insurance premiums by removing "outdated fuse" liabilities.
- Unlike generic retrofit kits, this Schneider Electric HFLCI is factory-matched to the dimensions of the original NHP0020 box (327mm H x 245mm W). The included spring-mounted trim automatically adjusts for a flush fit against the wall, ensuring a secure, tamper-resistant seal that looks like a brand-new installation.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Homeline
Product Or Component TypeLoadcentre
Complementary
- Enclosure Type
- Taylor (Crouse Hinds) NHP0020 327 mm 245 mm 78 mm
- Number Of Circuits
- 4
Number Of Tandem Circuit Breakers8
Number Of Spaces4
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1403002
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant
