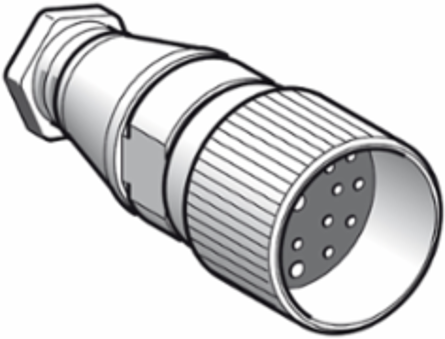

Telemecanique Sensors XZCC23FDM190S Female, M23, 19 pin, straight connector, cable gland Pg 13.5
- MPN: XZCC23FDM190S
- PPN: TES-XZCC23FDM190S
- UNSPSC: 39122230
CAD
$128.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This XZ Connector has a straight 19-pin M23 female connector with solder terminal connections with a Pg 13.5 cable gland entry. It has a metal enclosure with IP65 degree of protection, makes it ideal for heavy duty use in harsh conditions. It is compatible with XCSLF*M3 and XCSLE*M3 key operated safety interlock switches (with M23 19-pin male connector).
Documentation & Downloads
Specifications
Key Specifications
- Collar Material
- metal
- Range Of Product
- Telemecanique Cabling components
- Status Led
- without
- Cable Connection
- solder terminal 1 mm² 9-12 mm
Electrical Connectionstraight female connector M23, 19 pins
Accessory / Separate Part Categorycabling accessories
Accessory / Separate Part Typeconnector
Complementary
- Minimum Insulating Resistance
- 10000000 GΩ
- Cable Connector Fixing
- screw-on
- [In] Rated Current
- 7.5 A
- Net Weight
- 0.08 kg
[Ue] Rated Operational Voltage60 V AC || 75 V DC
Cable Gland TypePg 13.5
Enclosure Materialmetal
Contact Resistance5000 µOhm
Environment
- Ambient Air Temperature For Operation
- -25-110 °C
Ip Degree Of ProtectionIP65
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
