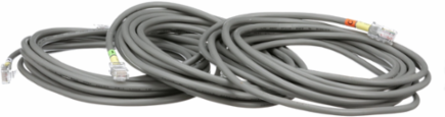

Square D TVS192PCK Cables connection kit, patch cable, IMA, 192 inches
- MPN: TVS192PCK
- UPC: 785901628774
- PPN: SCH-TVS192PCK
CAD
$293.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Advanced power and equipment protection for Square D™ NQ panelboards, TVS192PCK, engineered with input from contractors. The innovative Surgeon device saves time and money normally required when SPDs are factory-installed on any project.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States
Physical Attributes
- Cable Length
- 192 in
Important Information Attributes
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0819434345539844, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0007755606048986944, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 85 kg CO2 eq., 84.53708700876543
- Local Publishable Date
- 2025-11-13
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- End Of Life Doc Ref
- ENVEOLI2508025EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2531
- China Rohs In Scope
- No
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Product Or Component Type
- cables connection kit
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Pep Code
- ENVPEP2508025EN
- Pep Verification Date
- 2025-08-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Mexico, MX
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential In %
- 69
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8544422000
Carbon Footprint Of The End-of-life Phase [C1 To C4]1 kg CO2 eq., 1.1510742434018915
Carbon Footprint Of The Manufacturing Phase [A1 To A3]7 kg CO2 eq., 7.135736503398909
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Device Short NameIMA
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductSurgelogic
Software Versionv6.2.5-6
Total Lifecycle Carbon Footprint93 kg CO2 eq.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionProtect, against direct and indirect effects of lightning or against transient overvoltages, electronic equipment connected to networks with a rated operational voltage of up to 1000 V AC or 1500 V DC, via a surge arrester of type T, with Np poles, according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh175.2
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Accessory / Separate Part Categorycable accessories
Package Weight(Lbs)639.565 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 92.9066167507251
- Environmental Disclosure
- ENVPEP2508025EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-08-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
Mercury FreeYes
Circularity ProfileENVEOLI2508025EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2508025EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- cables connection kit
Range Of ProductSurgelogic
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
