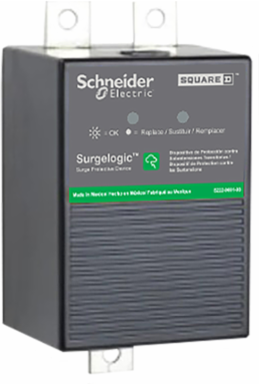

Square D MAM41 Surge protective device, Surelogic, MA replacement module, 100kA, 480Y/277V, 3 phase, 4 wire, open style
- MPN: MAM41
- UPC: 047569001734
- PPN: SCH-MAM41
CAD
$1142.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Surgelogic™ Type MA Systems feature module assemblies designed to ensure continued compliance with safety standards and optimal performance specifications following surge events. This is used as a replacement module for Surgelogic™ IMA and EMA Surge Protective Devices, it ensures continued protection and performance. Being modular in design, this unit is able to provide a surge current rating of 100,000 Amps and 120,000 Amps in severe electrical conditions through immediate responses from its advance diagnostic system. Designed for 480Y/277VAC three phase systems. This product is UL and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth13.462 cm
Important Information Attributes
- Device Short Name
- IMA, EMA
- Certificate Agency
- UL 1449:ed. 5, CSA C22.2 No 269.1
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.6 kg CO2 eq., 0.6429188972
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 12 kg CO2 eq., 12.4842192523
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- End Of Life Doc Ref
- ENVEOLI2003014EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2531
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Energy Efficiency Optimized
- False
- Local Signalling
- status LED green per phase normal operationstatus LED red per phase fault
- Phase
- 3 phase
- Product Or Component Type
- surge protection module
- Returnability
- Yes
- Sustainable Packaging
- No
- Wiring Configuration
- 4-wire
- Pep Verification Date
- 2020-04-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Energy model used: MEXICO
- Energy Model - Use [B6]
- Electricity mix; AC; 120V; US
- Height Nominal
- 20.828 cm
- [Uc] Maximum Continuous Operating Voltage
- 320 V
- Accessory / Separate Part Category
- replacement accessories
- Short-circuit Protection
- 200 kA
- Package Weight(Lbs)
- 907 g
- Warranty (In Months)
- 18
- Air Pollution (M3) Operational Energy Use [B6]
- 235080
- Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]
- 2768.2
- Net Use Of Fresh Water (M3) Operational Energy Use [B6]
- 4.8925
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 35029
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 2238.1
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 2238.1
- Customs Code
- 8536308000
Noise Level-42 dB, -42 dB
Carbon Footprint Of The Distribution Phase [A4]0.1170233439, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0042695118, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]2 768 kg CO2 eq., 2768.2
Local Publishable Date2025-12-12
Stocking FlagY
Use Carbon Footprint2768.2
Weee Product Category4
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
Without Single Use PlasticYes
Product Kit IdentifierN
Frequency Measurement Range47-63 Hz
Nominal Discharge Current20 kA
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductSurgelogic
Software VersionEIME v5.8.1
Total Lifecycle Carbon Footprint2 781 kg CO2 eq.
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionProtect during 20 years against direct or indirect effects of lightning or against transient overvoltages electrical equipements connected to electrical networks with 3 phases,160 kA per phase 480Y/277 V AC& 10-UL 1449:ed. 4 and UL 1283:ed. 5& 10-CSA C22.2 No 8:1986& 10-ANSI/IEEE C62.41 and ANSI/IEEE C62.45& 10-NEC 285
Functional-unit Unitunité (unit)
Energy Consumption On Product Lifetime In Kwh3998.064
Energy Model - Installation [A5]Electricity mix; AC; 120V; US
Energy Model - End Of Life [C1-c4]Electricity mix; AC; 120V; US
Width Nominal14.734 cm
[Ue] Rated Operational Voltage480Y/277 V AC
Connections - Terminalsterminals 10 AWG...2 AWG
Nbr. Of Units In Pkg.1
Take-backNo
Acidification Of Soil And Water (Kg.Equivalent.So2) Operational Energy Use [B6]2.6504
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]33704
Hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]74.013
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]423.26
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]37267
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]35029
Water Pollution (M3) Operational Energy Use [B6]136470
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-60 °C, -20-60 °C
- Take Back
- No
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2003014EN
- Nema Degree Of Protection
- open type
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2020-04-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
Ambient Air Temperature For Storage-40-65 °C, -40-65 °C
Recycled Metal Content At Cr Level0 %
Carbon Footprint2781.4484310052
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude0...12000 ft
Packaging Without Single Use PlasticYes
Relative Humidity0-95 %
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
General Attributes
- Phase
- 3 phase
- Range Of Product
- Surgelogic
Product Or Component Typesurge protection module
Surge Protection And Filtering Attributes
- Surge Current
- 100 kA
Accessories
