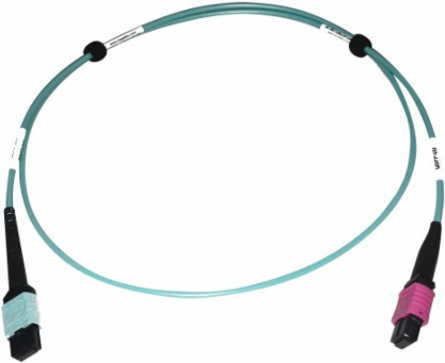

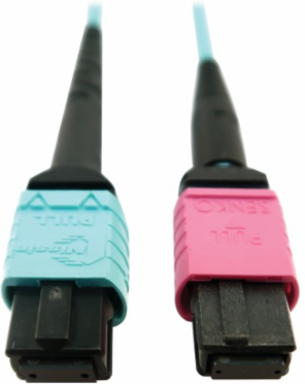

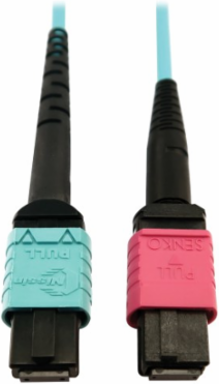

Tripp Lite N846D01M24DAQ Fiber Optic Cable, 400G Multimode OM4, 24F MTP/MPO-UPC to 16F MTP/MPO-UPC (F/F), Plenum, Aqua, 1 m
- MPN: N846D01M24DAQ
- UPC: 037332260505
- PPN: TRP-N846D-01M-24DAQ
CAD
$415.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
400G Multimode 50/125 OM4 Plenum Fiber Optic Cable, 24F MTP/MPO-UPC to 16F MTP/MPO-UPC (F/F), Aqua, 1 m
Documentation & Downloads
Specifications
Material
- Cable Jacket Color
- Aqua
- Cable Jacket Material
- PVC
Connector ColorAqua, Black, Magenta
Cable Jacket RatingOFNP
Dimensions
- Cable Length
- 1 m (3.3 ft)
- Side A - Connector 1
- 24F MPO (Female)
- Endface Polish
- PC
- Clad Diameter
- 125 microns
- Primary Coating Diameter
- 245 microns
Number of Fibers16
Side B - Connector 116F MPO (Female)
PolarityType B (Cross)
Core Diameter50 microns
Minimum Bend Radius20 mm (Dynamic); 10 mm (Static)
Performance
- Network Compatibility
- 400 Gbps
- Transmission Distance
- 100 m @ 850 nm Wavelength
- Operating Temperature Range
- -4 to 140°F (-20 to 60°C)
- Operating Humidity Range
- 5% to 85% RH, Non-Condensing
TechnologyMultimode
Attenuation @ 850NM3.0 dB/km
Storage Temperature Range-4 to 140°F (-20 to 60°C)
Storage Humidity Range35% to 65% RH, Non-Condensing
Reference
- Product Warranty Period
- Lifetime limited warranty
