Telemecanique Sensors XCSM3710L5 Safety limit switch, Telemecanique Safety switches XCS, XCSM, metal, steel plunger, 2 NC + 1 NO, cable 5 m
- MPN: XCSM3710L5
- PPN: TES-XCSM3710L5
- UNSPSC: 39122213
CAD
$202.47
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

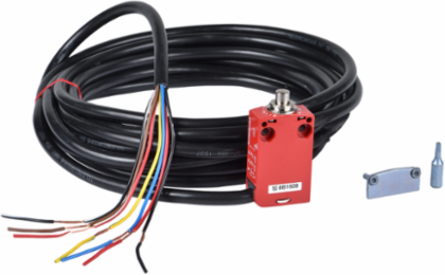

This XCSM Miniature Safety Limit Switch has a metal end plunger, a Zamak body and head and a 5 meter pre-cabled. It has 1 normally open and 2 normally closed break-before-make (slow break) contacts. Its B10D reliability data is 50 000 000. It has IK06 impact resistance and IP66 / IP67 / IP68 degree of protection, makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to Category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.
Documentation & Downloads
Specifications
Key Specifications
- Contacts Type And Composition
- 1 NC + 1 NC + 1 NO
- Product Or Component Type
- safety limit switch
- Component Name
- XCSM
- Material
- metal
- Type Of Approach
- on end approach
- Type Of Operator
- metal end plunger
Range Of ProductTelemecanique Safety switches XCS
Protection Technologyplastic protective cover, secured by 5-lobe socket head safety screw
Designminiature
Head Typeplunger head
Contact Operationslow-break, break before make
Complementary
- Height
- 60-60 mm
- Minimum Actuation Speed
- 6 m/min
- Fixing Mode
- by the body
- Head Material
- zamak
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV IEC 60664 || 4 kV IEC 60947-1
- Positive Opening Minimum Force
- 42.5 N
- Mechanical Durability
- 10000000 cycles
- Body Material
- zamak
- Minimum Force For Tripping
- 8.5 N
- Contact Code Designation
- B300, AC-15 (Ue = 240 V, Ie = 1.5 A)EN 60947-5-1 || B300, AC-15 (Ue = 240 V, Ie = 1.5 A)EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V, Ie = 0.1 A)EN 60947-5-1 || R300, DC-13 (Ue = 250 V, Ie = 0.1 A)EN/IEC 60947-5-1 appendix A
- Depth
- 16 mm
- Maximum Resistance Across Terminals
- 25 MOhm IEC 60255-7 category 3
Short-Circuit Protection6 A cartridge fuse gG (gl)
Repeat Accuracy0.05 mm on the tripping points
Cable Length5 m
Net Weight0.165 kg
[Ui] Rated Insulation Voltage300 VUL 508 || 400 V 3)IEC 60947-5-1 || 300 VCSA C22.2 No 14
Positive Openingwith NC contact
Maximum Actuation Speed0.5 m/s
Electrical Connectionpre-cabled
Cable Composition7 x 0.5 mm²
Width30 mm
Number Of Poles3
Environment
- Product Certifications
- CSA || UL
- Ambient Air Temperature For Operation
- -25-70 °C
- Shock Resistance
- 25 gn 18 ms IEC 60068-2-27
- Ip Degree Of Protection
- IP66 IEC 60529 || IP67 IEC 60529 || IP68 IEC 60529
- Electrical Shock Protection Class
- class I NF C 20-030 || class I EN/IEC 61140
- Protective Treatment
- TC
Ik Degree Of ProtectionIK06 EN 50102
StandardsEN 1088 || EN/IEC 60204-1 || UL 508 || EN/IEC 60947-5-1 || CSA C22.2 No 14
Vibration Resistance25 gn 10-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Safety Reliability DataB10d = 50000000 value given for a life time of 20 years limited by mechanical or contact wear
Safety Levelcan reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired IEC 61508
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110612EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI110612EN
