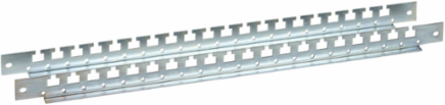

Schneider Electric NSYCFS96 Cable guide crossrails for framework, PanelSeT SFN, SF, SM, for electrical enclosure W600mm , set of 2

Cable guide crossrails for framework, PanelSeT SFN, SF, SM, for electrical enclosure W600mm , set of 2
  • MPN: NSYCFS96
  • PPN: SCH-NSYCFS96

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$56.38/ EA

Description

Spacial SF/SM 90° fixing support for cables. 599 x 600 mm. Multi-purpose cabling accessory. Mounting on structure of enclosure. Adjustable in depth every 25 mm. Steel made, zinc coated surface finish. 2 rail and fixing elements incl.

Specifications

Important Information Attributes

Persona Type Ids
LC, OM, OM8, PB, SI
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Device Composition
fixing elements, 2 rail
Local Data Status
Publishable
Return Indicator
N
Stock Policy
2
Scope Perimeter
At least in Europe
Reach Full Compliance Status Id
NOT_CONTAINING_SVHC
Rohs Eur In Scope
No
Rohs Eur Conformity Date
1916
China Rohs In Scope
No
With Recycled Cardboard
No
Product Contributes To Saved And Avoided Emissions
No
Tier
2
Function Option
Standard
Adjustment
adjustable in every 25 mm
Fixing Center
550 mm
Mounting Location
on structure of enclosure
Product Availability
Non-Stock - Not normally stocked in distribution facility
Quantity Per Set
set of 1
Returnability
No
Sustainable Packaging
No
Warranty In Months
18
Pn
1
Height Useful
20 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions- W: 600 mm, - W: 600 mm, - W: 600 mm, - W: 600 mm
Local Publishable Date2025-12-11
Stocking FlagY
Weee ScopeOut
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Applicationmulti-purpose
Materialsteel
Operating Angle90 °
Product Or Component Typesupport
RangePanelSeT
Surface Finishgalvanized
Accessory Separate Part Categorycabling accessory
Offer Owner Code190789
Height Nominal20 mm
Width Nominalnominal: 600 mm

Environment Attributes Main

China Rohs Regulation
Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc
Yes
Toxic Heavy Metal Free
Yes
Eu Rohs Directive
Compliant
Packaging Without Single Use Plastic
No
Reach Regulation
Free of Substances of Very High Concern above the threshold
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes

General Attributes

Product Or Component Type
support

ETIM

ETIM 8
EC000022
ETIM 9EC000022

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months

Specifications

Country of Origin
France
Height0.79 in
