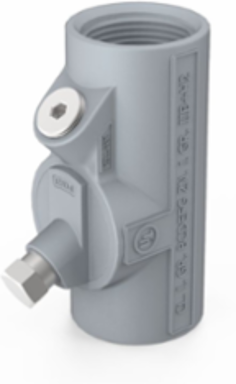

Killark EYD-6 Aluminum Drain Seal Fitting 2" NPT, 5 Inch x 2.9 Inch, Class I, II, III Hazardous Rating
- MPN: EYD-6
- UPC: 783936110769
- PPN: HBL-EYD-6
- UNSPSC: 39131708
CAD
$331.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Killark’s EYD drain sealing fittings offers options for installing in vertical positions for harsh hazardous locations where there is a probability that liquid or other condensed vapor may be trapped within enclosures or in the conduit raceway system. EYD series can make any sealing needs significant by offering a minimized turn radius for maximized installations. Options are available in copper-free aluminum and Duraloy iron with superior electro-statically applied powder coating for the best corrosive resistance.
Features
- Threaded for Rigid Conduit or IMC
- Tapered threads (NPT)
- Simplified installation
- Internal drainage path provides a visual means to ensure that the compound chamber is properly filled
- Temporary plastic sleeve protects thread for drain/breather from contamination when pouring compound
- Unique design enables installation of drain/breather right after compound is poured – no waiting
- Provides continuous water drain path while allowing conduit run to breathe, in compliance with the NEC
- Includes Drain Breather Fitting KDB-1
- Copper-free aluminum (less than 4/10 of 1%). Electrostatically applied powder coating.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Application
- To minimize the passage of gases and vapors from one electrical installation to another through the conduit system. To confine any explosions from sealed enclosures and prevent pressure pilling between conduit systems.
- Finish
- Powder Epoxy Paint
- Hub Size
- 2"
- Special Features
- Copper-free aluminum (less than 4/10 of 1%). Electrostatically applied powder coating.
- Width
- 2.9 in
- Finish Type
- Powder Epoxy Paint
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11716
- UL File Number
- E10514
- Series
- EYD Series
- BOX SIZE
- 0.100x5.000x10.000 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936110769
- Master Pack Description
- Each
Dimensions5 in x 2.9 in x 6.4 in
Ratings3R
ColorGray
Height6.4 in
Length5 in
TypeSealing Fitting
Engineering Drawing 1 Display TextKillark EYD-6
ARRA CompliantContact Manufacturer
Description - InvoiceSEAL FTG AL 2" DRAIN
Harmonization Code7609000000
Lead Time42 wk
Order Multiple1 EA
Sub Class CodeD30D237
Gross Weight with Packaging2.1
MaterialCopper-free aluminum (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - Gross Weight per Pack10.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
NAICS Code3359323114
