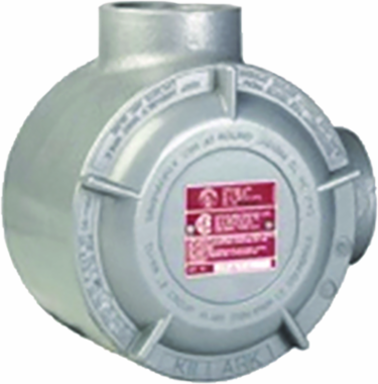

Killark GEJLT-6 2 Inch L-Type Aluminum Outlet Body with Cover, Weather-Resistant, Gray
Killark GEJLT-6 2 Inch L-Type Aluminum Outlet Body with Cover, Weather-Resistant, Gray
- MPN: GEJLT-6
- UPC: 783936211060
- PPN: HBL-GEJLT-6
- UNSPSC: 39121314
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$666.00/ EA
Description
2" GEJ Outlet Body L-Type, Aluminum
Features
- External cover threads on body protecting conductors from damage during pulling.
- No pinching of conductors during cover installation.
- Taper threaded hubs to provide ground continuity.
- Smooth integral hub bushing to protect conductor insulation when pulling.
- Internally threaded cover openings for additional wiring room.
- Cover furnished with box.
- Weather-resistant finish.
- Green ground screw standard.
- GE conduit outlet boxes have: external cover threads on body protecting conductors from damage during pulling; no pinching of conductors during cover installation; taper threaded hubs to provide ground continuity; smooth integral hub bushing to protect co
Specifications
Specifications
- Size
- 10.125 in x 8.5 in x 4.5 in
- ARRA Compliant
- Contact Manufacturer
- Country of Origin
- MX
- Each - Width
- 8.500 in
- Height
- 4.5 in
- Length
- 10.125 in
- Application
- Conduit boxes installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction, and provide access to conductors for maintenance and future system changes.
- Type
- Outlet Body With Cover
- Description - Invoice
- 2" ALUM OUTLET BODY L TYPE 4-7
- Harmonization Code
- 7609000299
- Lead Time
- 49 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D237
- Gross Weight with Packaging
- 5
- UL File Number
- E10514
- Series
- GE Series
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936211060
Special FeaturesGE conduit outlet boxes have: external cover threads on body protecting conductors from damage during pulling; no pinching of conductors during cover installation; taper threaded hubs to provide ground continuity; smooth integral hub bushing to protect co
ColorGray
Dimensions10.125 in x 8.5 in x 4.5 in
Hazardous Rating(s)Class I, Divisions 1 & 2, Group C (if sealed within 18"), D;Class I, Zones 1 & 2, Group IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Hub Size2"
Width8.5 in
Finish TypePowder Epoxy Paint
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11716
Hub PatternL
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
