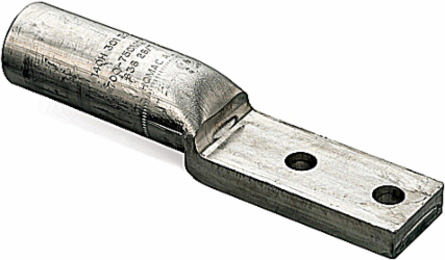

Homac AL 4/0 NTN 2 Hole Lug
- MPN: AL 4/0 NTN
- UPC: 783786693689
- PPN: T-B-AL 4/0 NTN
CAD
$49.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Aluminum Tin-Plated Two-Hole NEMA Lugs - straight lug, concentric 4/0, installing dies TX,71H,298,840,11A
Features
- Dual-Rated for Use with Aluminum and Copper Conductors.
- Made of Aluminum for High Strength and High Conductivity.
- Prefilled with Oxide Inhibitor to Prevent Oxidation and Keep Out Moisture.
- All Lugs Marked with Conductor Size and Die References for Easy Identification.
- Meets or Exceeds ANSI C119.4 Specifications.
Specifications
Additional
| Type | 2 Hole Lug |
|---|---|
| Material | Aluminum |
| Bolt Size | 1/2 inch |
| Weight | 21 lbs. per 100 |
| Brand Name | Homac |
| Application | General Purpose Lugs for Aluminum and Copper Terminations |
| Conductor Range | Concentric 4/0 |
|---|---|
| Finish | Tin Plated |
| Compliance | Meets or Exceeds ANSI C119.4, UL Listed |
| Outer Dimensions | 13.3 x 8 x 7.6 in. |
| Insulation | No |
