Schneider Electric NSYSLCR60 Light Cross Rails 600mm, Zinc-Plated Steel, Set of 2
- MPN: NSYSLCR60
- PPN: SCH-NSYSLCR60
CAD
$50.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

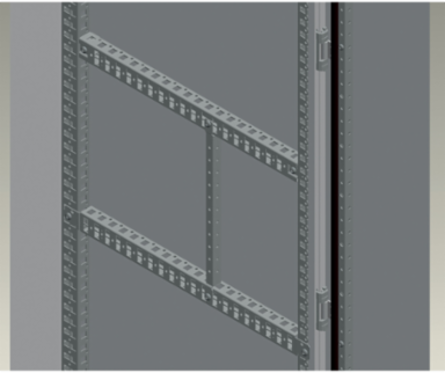

Spacial SF/SM light cross rails. 599 x 600 mm. Equipped with a row of 5.2 mm drillings on a 25 mm pitch. Allows fixation with M6 self-tapping screws. In zinc-plated steel, thickness 2 mm. For enclosures D600 mm. 2 cross rails.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain
- Width
- 23.62 in
Height1.18 in
Depth18.6 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- fixing elements, 2 cross rails
- Mounting Location
- on structure of enclosure, between cross rails
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 2 kg CO2 eq., 1.951203511
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 4 kg CO2 eq., 3.606448326
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Application
- multi-purpose
- Fixing Mode
- by screws M6 self tapping
- Mounting Support
- adaptation profile, on SM enclosures
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 1
- Returnability
- No
- Surface Finish
- zinc coated
- Total Lifecycle Carbon Footprint
- 6 kg CO2 eq.
- Warranty In Months
- 18
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; FR
- Height Nominal
- 30 mm
- Width Nominal
- fixing centers: 550 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions- W: 600 mm, - W: 600 mm, - W: 600 mm, - W: 600 mm
Carbon Footprint Of The Distribution Phase A40.159773577, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.184039214, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Publishable Date2026-04-15
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1916
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Adjustmentadjustable with a pitch of 25 mm
Energy Efficiency OptimizedFalse
Materialsteel
Number Of Horizontal Rows1
Product Or Component Typelight cross rail
RangePanelSeT
Software Versionv5.9.4
Sustainable PackagingNo
Accessory Separate Part Categorymounting accessory
Pep CodeENVPEP1109023EN
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Recyclability Potential, In %98
Height Useful30 mm
Width Realnominal: 600 mm
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 5.901464629
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-03-30
- Psr Version
- PSR-0005-ed2-2016 03 29
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1109023EN
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP1109023EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- light cross rail
ETIM
- ETIM 8
- EC002620
ETIM 9EC002620
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
