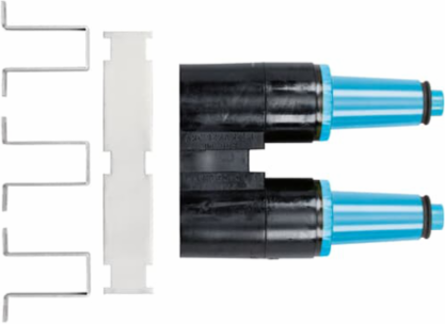

Thomas & Betts 274J2-5 2-PT JCT W/O BRKT
- MPN: 274J2-5
- UPC: 783786331161
- PPN: T-B-274J2-5
- UNSPSC: 26121630
CAD
$744.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
25kV 200 Amp, Loadbreak 2-point Junction With U Straps
Specifications
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 1779 >> Cable accessories |
|---|
Additional Information
| Application | Designed for subsurface, vault or padmount applications and can be used for sectionalizing, looping, tapping, and equipment bypass. Suitable for use on 25-kV class distribution systems, and rated for 200-ampere loadmake/loadbreak operation. |
|---|---|
| Effective Date | 19980226 |
| Product Name | PRIMARY CABLE ACC. 200 SEP CON |
| Size | 4.00 inch (101.6 mm) Center to Center, 2.50 inch (63.5 mm) Diameter. 8.46 inch (214.9 mm) height |
| Standards | ANSI/IEEE 386 |
| Brand / Label | Elastimold |
|---|---|
| Material | EPDM Rubber with Stainless Steel Strap |
| Product Type | 2-Point Junction |
| Special Functions | 25kV, 200 Amp Loadbreak 2-Way Junction. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provides mating for other Elastimold loadbreak type products. Provides mating for Elastimold Elbow connectors. Mounting U-Straps for installation. |
| Temperature Range | -40 to +65 °C |
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
