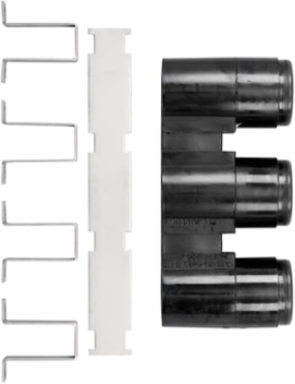

Thomas & Betts K1601WJ3-5 3 POINT WELL JCT W/O BRKT
- MPN: K1601WJ3-5
- UPC: 783786633333
- PPN: T-B-K1601WJ3-5
- UNSPSC: 26121630
CAD
$1152.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15/25kV 200 Amp, loadbreak 3-way Well Junction with U Straps, Hardware package consists of U Straps and back plate only.
Specifications
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 1779 >> Cable accessories |
|---|
Additional Information
| Application | Fully shielded, fully submersible, separable insulated connectors designed for energized or de-energized operation. They are suitable for use on 15/25kV class systems. |
|---|---|
| Effective Date | 19980108 |
| Product Name | PRIMARY CABLE ACC. 200 SEP CON |
| Size | 4.00 inch (101.6 mm) Center to Center |
| Standards | ANSI/IEEE 386 |
| Brand / Label | Elastimold |
|---|---|
| Material | EPDM Rubber with Stainless Steel Bracket |
| Product Type | 3-Way Well Junction |
| Special Functions | 15/25kV, 200 Amp Loadbreak 3-Way Well Junction. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provides mating for Elastimold Elbow connectors through a variety of inserts. U-Straps for installation. |
| Temperature Range | -40 to +65 °C |
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
