Schneider Electric NSYSPBCN35 Side panels, PanelSeT SFN, for busbar chamber D500mm on electrical enclosure, RAL 7035, set of 2
Schneider Electric NSYSPBCN35 Side panels, PanelSeT SFN, for busbar chamber D500mm on electrical enclosure, RAL 7035, set of 2
- MPN: NSYSPBCN35
- PPN: SCH-NSYSPBCN35
- UNSPSC: 39121117
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$211.34/ EA
Description

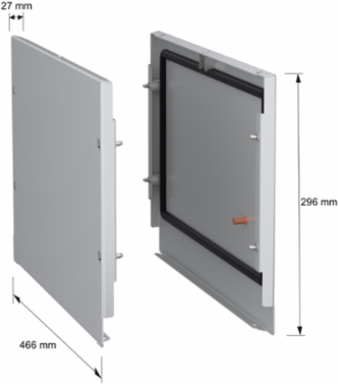

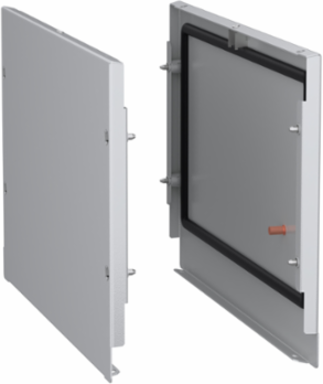

These two steel side panels are suitable to assemble a PanelSeT SFN top busbar chamber. They have a nominal height and depth of 300 mm and 500 mm, respectively. The panels are made of steel sheet. An epoxy-polyester powder finish provides a smooth appearance. It has a grey (RAL 7035) color.
Features
- Built for the purpose of assembling a busbar chamber.
- Sturdy, robust, and durable for component protection.
- Ergonomic design for convenience & time-saving operations.
Specifications
Physical Attributes
- Color
- Gray RAL 7035)
Important Information Attributes
- Device Composition
- fixing elements, 2 side panel
- Carbon Footprint Of The Distribution Phase A4
- 0.720546181, 0.7 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 1.020120647, 1 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2026-02-24
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2507020EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Device Application
- multi-purpose
- Fixing Mode
- by screws captive - from the outside of enclosure
- Mounting Location
- sides of top busbar chamber
- Product Availability
- Stock - Normally stocked in distribution facility
- Quantity Per Set
- set of 1
- Returnability
- Yes
- Sustainable Packaging
- No
- Accessory Separate Part Category2
- enclosure accessory
- Stocking Flag
- N
- Pep Code
- ENVPEP2301018EN
- Pep Verification Date
- 2023-07-31
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional Unit Unit
- unit
- Energy Model Installation A5 2
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model End Of Life C1 C4 2
- Electricity Mix; Production mix; Low voltage; UE-27
Enclosure Nominal Dimensions- H: 300 mm W: 500 mm D: 500 mm, - H: 300 mm W: 500 mm D: 500 mm, - H: 300 mm W: 500 mm D: 500 mm, - H: 300 mm W: 500 mm D: 500 mm, - H: 300 mm W: 500 mm D: 500 mm, - H: 300 mm W: 500 mm D: 500 mm, - H: 300 mm W: 500 mm D: 500 mm, - H: 300 mm W: 500 mm D: 500 mm
Carbon Footprint Of The End Of Life Phase C1 To C49 kg CO2 eq., 8.60752977
Carbon Footprint Of The Manufacturing Phase A1 To A310 kg CO2 eq., 9.773937885
Local Data StatusPublishable
Legacy WEEE ScopeOut
EOLI Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorY
Energy Efficiency OptimizedFalse
Materialsteel
Package Weight Lbs4.300 kg
Product Or Component Typeside panel
RangePanelSeT
Surface Finishepoxy-polyester powder
Total Lifecycle Carbon Footprint20 kg CO2 eq.
Medium DescSide panels, PanelSeT SFN, for busbar chamber D500mm on electrical enclosure, RAL 7035, set of 2
Product Kit IdentifierN
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional Unit DescriptionProtect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529).& 10X = Total number of enclosures or cabinets = 1& 10In = Rated current allowed in this enclosure (A) = 2500A& 10Voltage range = Low Voltage& 10Current type = AC/DC Current
Energy Model Manufacturing A1 A3 2Electricity Mix; Production mix; Low voltage; FR
Energy Model Use B6 2Electricity Mix; Production mix; Low voltage; UE-27
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Carbon Footprint
- 20.12213448
- Environmental Disclosure
- ENVPEP2301018EN
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2301018EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2507020EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-07-31
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- side panel
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Height
- 11.81 in
Width19.69 in
