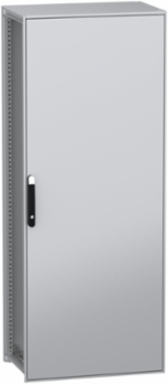

Schneider Electric NSYSFN20850 Floor Standing Modular Electrical Enclosure 2000x800x500mm IP55
- MPN: NSYSFN20850
- PPN: SCH-NSYSFN20850
CAD
$3259.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This floor standing modular electrical enclosure by Schneider Electric is engineered to provide robust protection for electrical components in challenging environments. With an IP55 rating, it ensures that your equipment remains safe from dust and low-pressure water jets, making it suitable for a variety of industrial applications. Designed for versatility and ease of installation, the enclosure measures 2000x800x500mm, offering ample space for organized equipment arrangement. Its sturdy construction makes it a reliable choice for safeguarding critical infrastructure while maintaining easy access for maintenance and modifications.
Documentation & Downloads
Specifications
Additional
- IP Rating
- IP55 IEC 60529
- NEMA Rating
- NEMA 3R/12
- Enclosure Width
- 800 mm
- Mounting
- Floor-standing
- Door Type
- Plain front
- Material
- Frame galvanised steel, uprights galvanised steel, door sheet steel, panels sheet steel, hinge zamak, handle polyamide 6 with 30% fibre glass
- Lock Type
- 4 points lock, handle with 5 mm double bar insert front door
- Device Composition
- 2 sliding rails, 4 mounting plate quick-fixing brackets, 1 structure, 1 door, 1 locking system with handle door, 1 rear panel, 1 roof
- Standards
- IEC 62208
- China RoHS Regulation
- Pro-active declaration (out of China RoHS legal scope)
- RoHS Exemption Information
- Yes
- Mercury Free
- Yes
- Color
- Gray RAL 7035 (enclosure), Black RAL 9005 (handle)
- Device Application
- Multi-purpose
- Mounting Plate Description
- Without mounting plate

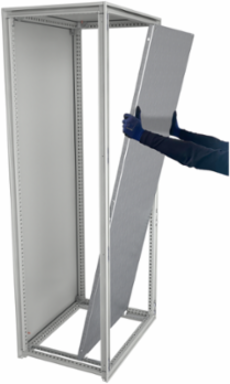

- Removable Parts
- Door, rear panel, roof, mounting plate bracket, sliding rail by screws
IK RatingIK10 IEC 62262

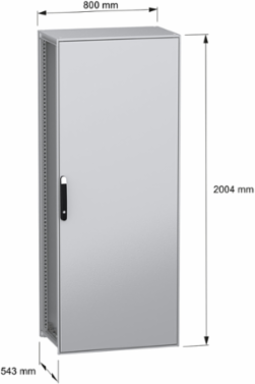

Enclosure Height2000 mm
Enclosure Depth500 mm
Number of Doors1 front door
Door Opening SideReversible 120°
Surface FinishEpoxy-polyester powder

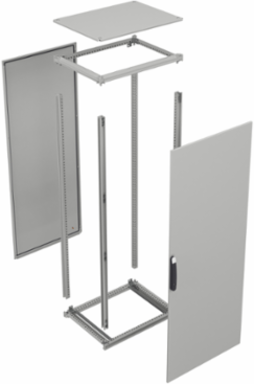

Structure TypeFormed from a single section; panels and doors built into the structure; vertical uprights joined with top and bottom frames; perforated structure with 25 mm pitch
AccessibilitySides, rear, front
Eu RoHS DirectivePro-active compliance (out of EU RoHS legal scope)
Reach RegulationFree of Substances of Very High Concern above threshold
Sustainable Offer StatusGreen Premium product
Weight181.1 kg
Warranty18 months
Type Of Gland PlateWithout gland plate
RangePanelSeT
