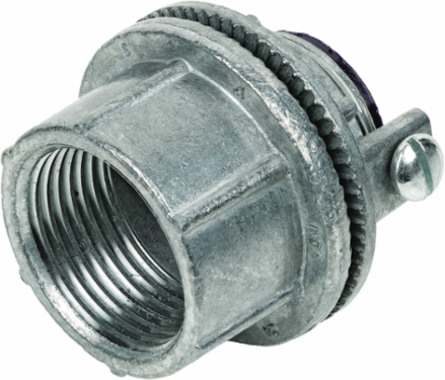

Killark WH-6G 2 Inch Zinc Weatherproof Conduit Hub with Ground, Vibration-Proof Termination
Killark WH-6G 2 Inch Zinc Weatherproof Conduit Hub with Ground, Vibration-Proof Termination
- MPN: WH-6G
- UPC: 783936074733
- PPN: HBL-WH-6G
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$112.69/ EA
Description
2" Zinc Weather Proof Conduit Hub w/ Ground
Features
- Oversized locknut provides for a strong vibration-proof termination
- Captive sealing ring
- Serrations on hub body and locknut provide effective positive ground path
- Insulated throat protects conductors
- Oversized locknut provides for a strong vibration-proof termination. Captive sealing ring. Serrations on hub body and locknut provide effective positive ground path. Rugged cast zinc construction. Insulated throat protects conductors. Suitable for use wit
Specifications
Specifications
- Country of Origin
- IN
- Each - Width
- 3.236 in
- Application
- Conduit hubs provide a liquid tight, oil tight and dust tight termination of electrical conduit through the walls of sheet metal enclosures. The hubs fit into standard knock-out dimensions.
- Finish
- Natural
- Hub Size
- 2"
- Special Features
- Oversized locknut provides for a strong vibration-proof termination. Captive sealing ring. Serrations on hub body and locknut provide effective positive ground path. Rugged cast zinc construction. Insulated throat protects conductors. Suitable for use wit
- Width
- 3.236 in
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- HUB, 2" CONDUIT WPRF W/ GRD SCR
- Harmonization Code
- 8547900030
- Lead Time
- 28 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D236
- Material
- Zinc
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 14.400 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 15
Dimensions3.236 in x 3.236 in x 1.895 in
Hazardous Rating(s)Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
ColorGray
Height1.895 in
Length3.236 in
TypeWeatherproof Conduit Hub With Ground Screw
Finish TypeNatural
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Gross Weight with Packaging0.96
SeriesWH Series
BOX SIZE6.000x8.625x8.500 (in)
Carton - Number of Sub Packs15
Carton - SCC-14 Next Lower Level Sub Pack00783936074733
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
