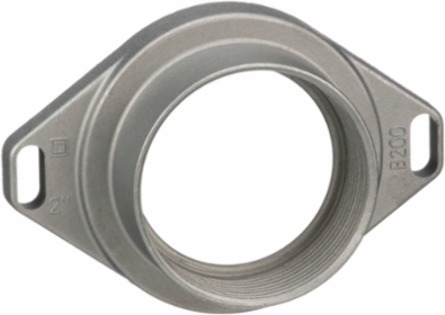

Square D B200 Load Center Bolt-On Hub, 2 Inch, Rainproof, UL Listed
- MPN: B200
- UPC: 785901459477
- PPN: SCH-B200
CAD
$71.71
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Industrial Circuit Breaker Enclosures are designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Provides a dead front housing for circuit breakers, molded case switches, and motor circuit protectors to prevent personnel from accidentally contacting energized parts. Designed to meet or exceed UL 50 requirements for specific environmental conditions. Allow breaker operation without removing cover. These units are UL Listed and CSA Certified. Square D equipment with “R’’ or “RB’’ suffix, designated NEMA 3R rainproof construction, utilizes bolt-on hubs listed below. “RB’’ devices will accept 3/4 in. through 2- 1/2 in. bolt-on hubs without the use of reducers. Off-center conduit thread openings and elongated mounting holes provide quick and easy adjustment to eliminate costly conduit offsets and bends. Load Center Hub, 2 in, rainproof, for RB devices is a conduit entry, and is used for conduit installation. This bolt-on accessory has a UL listed rating. The dimensions are 1.38 mm(H)4.44 mm(W)3.09 mm(D). This product comes with an 18 month warranty.
Features
- Engineered as a Type B bolt-on conduit hub, this authentic Square D by Schneider Electric accessory provides a secure, weatherproof entry point for running electrical conduit into an enclosure. It acts as the structural gateway for bringing main power feeds directly into the panel, protecting inner wiring from sharp raw metal cuts and maintaining a clean path for standard wiring transfers.
- Built specifically for heavy-duty rainproof performance, this 2.00-inch conduit hub features a precision-molded design with an integrated perimeter sealing gasket. When bolted onto an enclosure with an "R" or "RB" catalog suffix, it forms an immediate watertight barrier that satisfies NEMA Type 3R requirements, keeping external rain, ice, and driving snow from seeping into your active circuit breakers or load centers.
- Designed with specialized off-center conduit thread openings and a distinct asymmetrical layout, this hardware gives contractors critical alignment flexibility during installation. If a structural wall barrier or structural beam blocks your incoming run, simply rotating the hub shifts the final entry axis slightly, allowing you to bypass physical obstructions without requiring costly, time-consuming conduit offsets or manual pipe bends.
- Featuring a standard Type B bolt-on interface pattern, this component installs directly onto pre-punched enclosure top-caps using the included high-torque mounting screws. It accepts a direct 2-inch conduit connection natively and fits seamlessly onto a wide range of Square D commercial safety switches, industrial molded case circuit breaker enclosures, and Homeline or QO outdoor load centers without requiring external reducers.
- Manufactured to strict industrial safety benchmarks, the B200 hub is fully UL Listed and CSA Certified to meet rigorous North American building requirements. The rugged cast construction provides continuous electrical ground continuity across the conduit-to-enclosure bond, ensuring trouble-free code inspections and long-term operating peace of mind in challenging environmental conditions.
Documentation & Downloads
Specifications
Additional
- Hub Type
- B

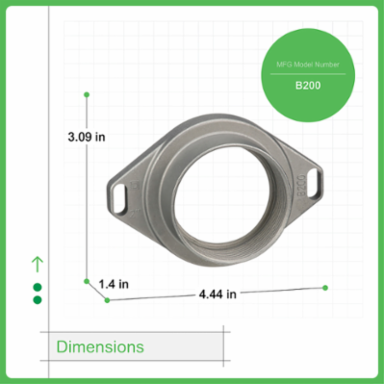

- Width
- 4.44 in
- Depth
- 3.09 in
- RoHS
- Compliant with Exemptions
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1304031
Product CertificationsUL Listed, CSA Certified
Height1.4 in
Conduit Entry2 in
Reach RegulationContains SVHC above threshold
Sustainable Offer StatusGreen Premium product
