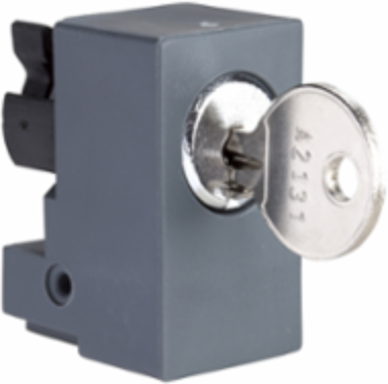

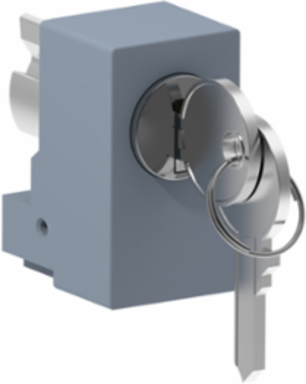

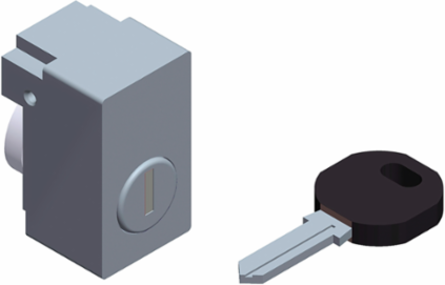

Schneider Electric NSYIN3113A1 Cylindrical Barrel Keylock 3113A, Multi-Purpose for SF/SM/SD/PLA Enclosures
- MPN: NSYIN3113A1
- PPN: SCH-NSYIN3113A1
CAD
$45.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Designed for versatility and security, the cylindrical barrel keylock is an essential component for various applications within the Thalassa range. This keylock, identified by the key number 3113A, is compatible with a variety of enclosures, including the SF, SM, SD, and PLA models, making it a reliable choice for panel builders and automation specialists. With a robust design and an 18-month warranty, this locking accessory not only ensures the safety of your equipment but also boasts a minimal carbon footprint, reflecting a commitment to sustainability. Manufactured in Germany, it comes as a complete set, including one cylindrical barrel and two keys, ready to enhance the functionality and security of your installations.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, Germany, Spain
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Carbon Footprint Of The Distribution Phase [A4]
- 0.01231989, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.014190976, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2026-04-14
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1912
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Device Application
- multi-purpose
- Energy Efficiency Optimized
- False
- Mounting Support
- handle
- Product Or Component Type
- cylindrical barrel
- Range
- PanelSeT
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 0.5 kg CO2 eq.
- Pep Code
- ENVPEP1109023EN
- Pep Verification Date
- 2023-03-30
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Recyclability Potential In %
- 98
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8301300090
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.2 kg CO2 eq., 0.150454247
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.3 kg CO2 eq., 0.278087582
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Composition1 cylindrical barrel2 key
Key Number3113A
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 1
ReturnabilityNo
Sustainable PackagingNo
Type Of KeylockCylinder
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionProtect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; FR
Accessory / Separate Part Categorylocking accessory
Package Weight(Lbs)64.000 g
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 0.455052694
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-03-30
- Psr Version
- PSR-0005-ed2-2016 03 29
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1109023EN
Packaging Made With Recycled CardboardNo
Product CompatibilitySF, SM, SD and PLA enclosures
Pep CodeENVPEP1109023EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- cylindrical barrel
ETIM
- ETIM 8
- EC000743
ETIM 9EC000743
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
