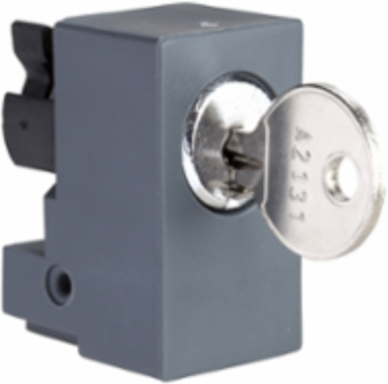

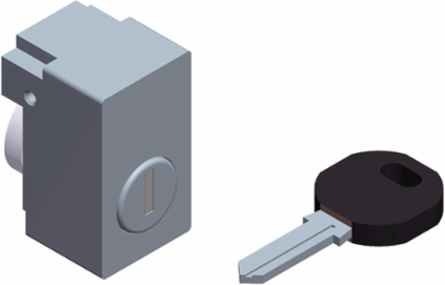

Schneider Electric NSYIN421E1 Cylindrical Barrel Keylock with 18-Month Warranty, Compatible with SF, SM, SD, PLA Enclosures
- MPN: NSYIN421E1
- PPN: SCH-NSYIN421E1
CAD
$45.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

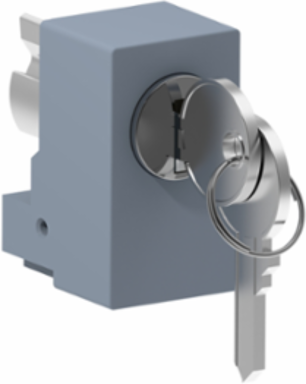

The cylindrical barrel keylock from Schneider Electric offers a reliable and versatile locking solution designed for use with a variety of enclosures, including the SF, SM, SD, and PLA models. This multi-purpose device consists of a single cylindrical barrel and two keys, ensuring secure access control while maintaining ease of use. With an 18-month warranty and compatibility with the PanelSeT and Thalassa ranges, this keylock is an essential accessory for enhancing the security and functionality of your automation and control systems. Crafted in Germany, it reflects a commitment to quality and performance, making it a dependable choice for your locking needs.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, Germany, Spain
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 cylindrical barrel, 2 key
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 0.1 kg CO2 eq., 0.141050856
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 0.3 kg CO2 eq., 0.260707108
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Mounting Support
- handle
- Product Or Component Type
- cylindrical barrel
- Range
- PanelSeT
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 0.4 kg CO2 eq.
- Accessory Separate Part Category
- locking accessory
- Pep Code
- ENVPEP1109023EN
- Pep Verification Date
- 2023-03-30
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Recyclability Potential, In %
- 98
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase A40.011549897, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.01330404, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Publishable Date2026-04-14
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1912
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Device Applicationmulti-purpose
Key Number421E
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 1
ReturnabilityNo
Sustainable PackagingNo
Type Of KeylockCylinder
Warranty In Months18
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionProtect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; FR
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 0.426611901
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-03-30
- Psr Version
- PSR-0005-ed2-2016 03 29
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1109023EN
Packaging Made With Recycled CardboardNo
Product CompatibilitySF, SM, SD and PLA enclosures
Pep CodeENVPEP1109023EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- cylindrical barrel
ETIM
- ETIM 8
- EC000743
ETIM 9EC000743
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
