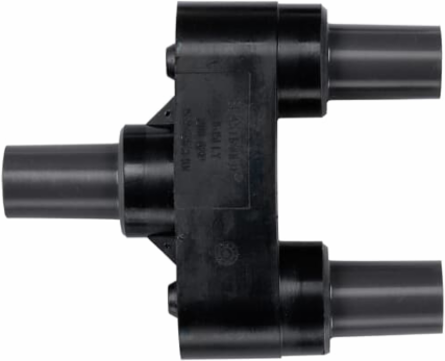

Thomas & Betts K151LYFAB1220 200A 25KV LOCKING Y SPLICE
- MPN: K151LYFAB1220
- UPC: 783786635665
- PPN: T-B-K151LYFAB1220
- UNSPSC: 39121421
CAD
$1550.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Locking Y Splice, 15/25KV, 200 Amp. DeadBreak, Cable Insulation Diameter 0.625 inch to 0.735 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded #2/Solid #1/mmSquared 33.62.
Specifications
Additional Information
- Application
- Used where a new tap is required on an existing cable or where a Y-joint is required in a new cable installation.
- Color
- Black
- Effective Date
- 19980204
- Includes
- Receptacle Housing, Pin Connectors, lubricant, Installation Instructions, Crimp Chart, Nylon Rod, Y-Bus
- Material
- Housing - EPDM Rubber
- Product Type
- Deadbreak Locking Splice with Test Point
- Special Functions
- Permanent Locking Apparatus, Fully Shielded, Fully Submersible Molded Rubber Housing, 100 Percent Peroxide Cured Construction includes Insulation and Conductive EPDM Materials.
- Temperature Range
- -40 to +65 °C
Brand / LabelElastimold
Current Rating200 A
Environmental ConditionsAll Weatheronditions °C
Insulation MaterialYes, EPDM Rubber
Product NamePRIMARY CABLE ACC. 200 SEP CON
SizeLength 22.30 inches
StandardsANSI/IEEE Standard 386
Voltage Rating15 to 25 kV
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
