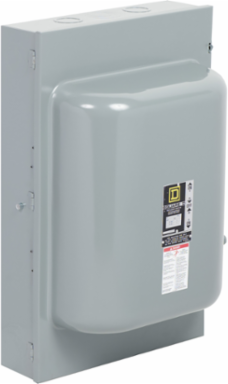

Square D C82344 Double Throw Safety Switch 200A 480V AC 3 Poles NEMA 1 Mercury Free

MPN: C82344
UPC: 785901995647
PPN: SCH-C82344
UNSPSC: 39122218

$2167.48

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Schneider Electric C82344 Double Throw Safety Switch is designed to ensure safety and reliability in electrical applications. With a robust capacity of 200A and operating at 480V AC across three poles, this switch delivers efficient control and seamless operation for a variety of industrial settings. Engineered to be mercury-free, it reflects a commitment to environmentally responsible design while offering the dependability required in safety switches. Ideal for automation and control, this switch provides an essential safety solution, ensuring secure connectivity in your electrical systems.

Features

Square D™ double throw safety switches are designed to survive in the most grueling conditions
Built with safety in mind
Easily identifiable switch's status using color coded handle
Product characteristics conformity is certified by the Underwriters Laboratories (UL), NEMA KS1, and ANSI

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

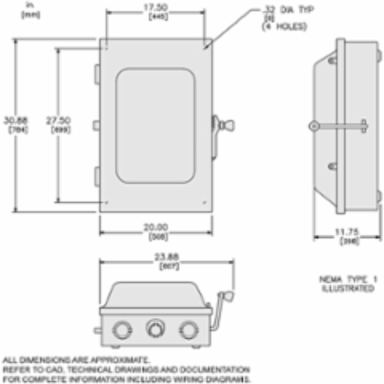

Depth	11.75 in

Complementary Attributes

Line Rated Current	200 A

Ue Rated Operational Voltage	250 V DC480 V AC

Important Information Attributes

Persona Type Ids	LC, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	Outside of Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Disconnector Device Type	non-fusible disconnect
Number Of Poles	3
Product Or Component Type	Double Throw Safety Switch
Sustainable Packaging	Yes
Height Nominal	30.88 in
Certificate Agency	CSA
Customs Code	8536509045

Persona Type Names	Contractor, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Local Publishable Date	2026-08-22
Device Type	LV equipment - LV fuse - switch
Traceability	No
Average Life Duration	15 year(s)
Weee Product Category	4
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1920
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Awg Gauge	6 AWG...300 kcmil copper or aluminium
Energy Efficiency Optimized	False
Product Availability	Stock - Normally stocked in distribution facility
Returnability	Yes
Tightening Torque	275-275 lbf.in 13.30-127 mm² (6 AWG...250 kcmil)
Width Nominal	23.88 in
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Environmental Disclosure	ENVPEP2503028EN
Nema Degree Of Protection	NEMA 1 galvannealed steel
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2503028EN
