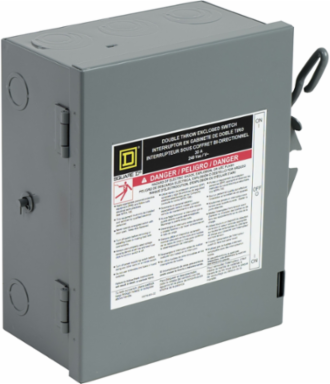

Square D C92351 Double Throw Safety Switch 30A 240VAC 3 Poles NEMA 1 9.5 Inch x 7.5 Inch x 4.25 Inch
- MPN: C92351
- UPC: 785901995739
- PPN: SCH-C92351
- UNSPSC: 39122218
CAD
$582.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Schneider Electric's Double Throw Safety Switch is an essential component for efficient power distribution, designed for applications where safety and reliability are paramount. Capable of handling up to 30A at 240VAC, this heavy-duty switch features three poles, ensuring a robust performance in demanding environments. Its compact design, measuring 9.5 inches by 7.5 inches by 4.25 inches, is suitable for various installations, while the NEMA 1 rating indicates its suitability for indoor use, protecting against minor dust and contact. This safety switch not only enhances operational safety but also provides peace of mind in managing electrical systems effectively.
Features
- Heavy duty switches isolate power in daily activities and provide an effective way to interrupt power in an emergency
- Designed to satisfy individual requirements for all customers
- Suitable for service entrance when equipped with neutral assembly or equipment grounding kit
- All feature a quick-make, quick-break operating mechanism, a dual cover interlock
- Designed to have a mechanical endurance three times greater than NEMA standards
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Depth | 4.25 in |
| Weight | 3500 g |
|---|
Complementary Attributes
| Line Rated Current | 30 A |
|---|
| Ue Rated Operational Voltage | 250 V DC240 V AC |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Tightening Torque | 45-45 lbf.in 13.3-13.3 mm² (6 AWG), 40-40 lbf.in 8.367-8.367 mm² (8 AWG), 35-35 lbf.in 2.06-5.261 mm² (14 AWG...10 AWG) |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 8 kg CO2 eq., 8.288607095707178 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 17 kg CO2 eq., 17.292296704518122 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Disconnector Device Type | non-fusible disconnect |
| Number Of Poles | 3 |
| Product Or Component Type | Double Throw Safety Switch |
| Software Version | v6.2.4 |
| Total Lifecycle Carbon Footprint | 45 kg CO2 eq. |
| Data Source | extrapolated product |
| Width Nominal | 7.5 in |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Persona Type Names | Contractor, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The Distribution Phase A4 | 6.731703575497941, 7 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.015248068832435133, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 13 kg CO2 eq., 13.00583968420949 |
| Local Publishable Date | 2025-11-13 |
| Device Type | LV equipment - LV fuse - switch |
| Traceability | No |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 4 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1920 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Awg Gauge | 12 AWG...2 AWG aluminium14 AWG...2 AWG copper |
| Energy Efficiency Optimized | False |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Sustainable Packaging | Yes |
| Database Version | 2024-01 |
| Height Nominal | 9.5 in |
| Certificate Agency | CSA |
| Customs Code | 8536509045 |
| Functional Unit Description | Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years. |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 90 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 45.33369512876517 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2503028EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2503028EN |
| Nema Degree Of Protection | NEMA 1 galvannealed steel |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-03-01 |
| Psr Version | PSR-0005-ed3-2023 06 06 |
General Attributes
| Product Or Component Type | Double Throw Safety Switch |
|---|
