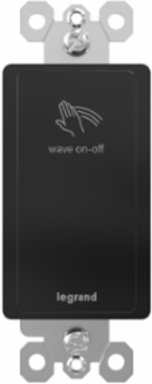

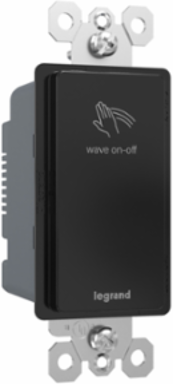

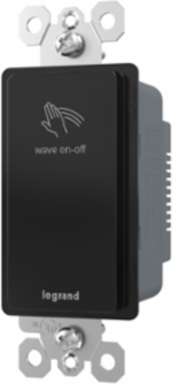

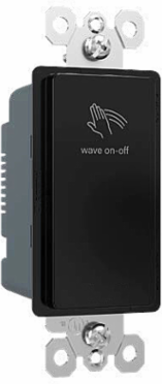

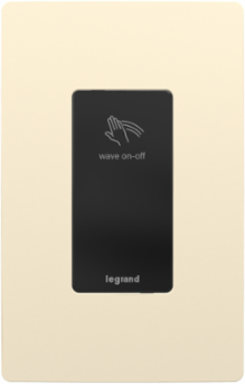

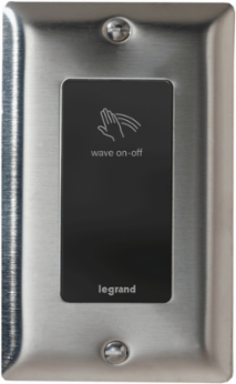

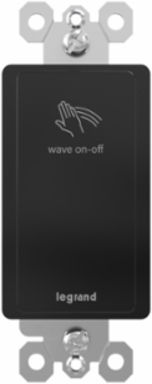

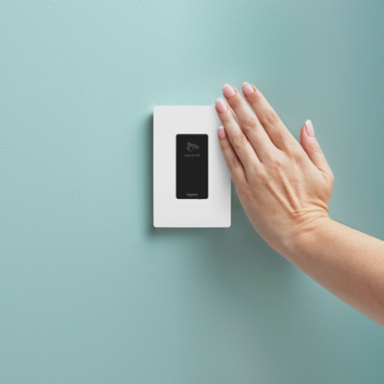

Radiant RSWV203 radiant® 20A Wave® Switch
- MPN: RSWV203
- UPC: 785007382518
- PPN: P-S-RSWV203
CAD
$88.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

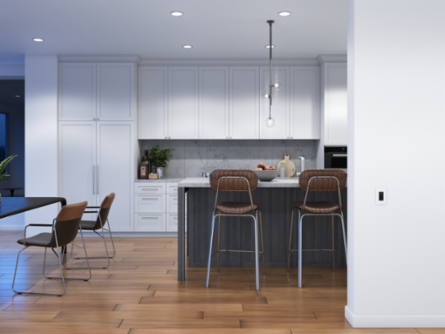

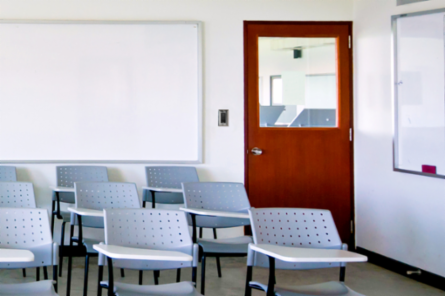

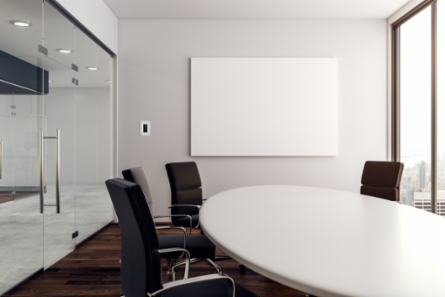

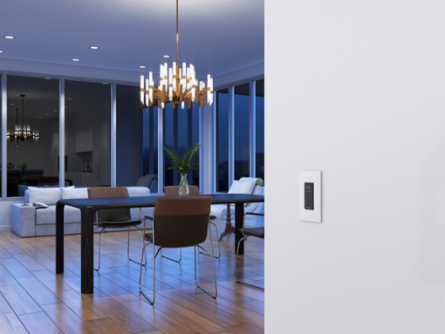

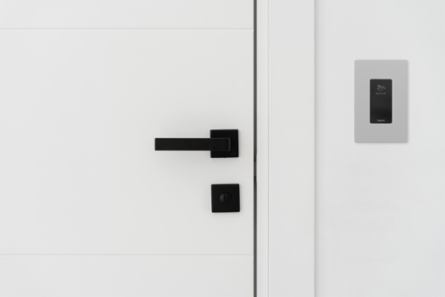

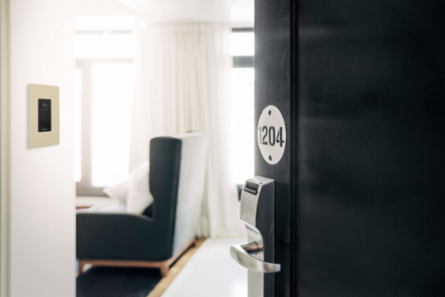

When it comes to lighting control, it's time to keep your hands…or at least their messes…to yourself. Thanks to Legrand’s innovative touchless technology, this sleek switch lets you turn lights on or off with a simple wave for the germ-and-worry solution that’s perfect for any home’s entryway or kitchen, as well as for shared spaces like offices, hotels and more. Wave “hello” to cleaner, more convenient control for cleaner, more convenient spaces. Made exclusively for use with the screwless Wall Plates from the radiant® Collection, sold separately.Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.
Features
- Features innovative touchless control for a convenient, germ-free way to turn on lights...all it takes is a simple wave
- Installs easily in 15 minutes or less, fitting into an existing electrical box. Usable in both single-pole and 3-way applications

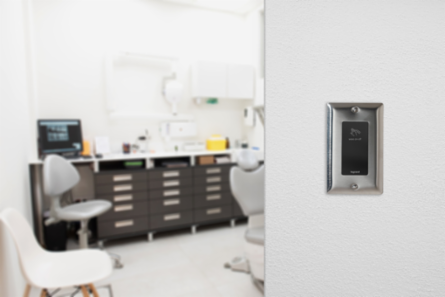

- Made for use in both residential and commercial applications; features durable construction to withstand rigorous cleaning practices
- Includes a rating of up to 3/4 HP for adding touchless control to small motors
- Adjust the internal sensor to respond to movement from 1 to 6 inches from the switch face to fit your space and needs

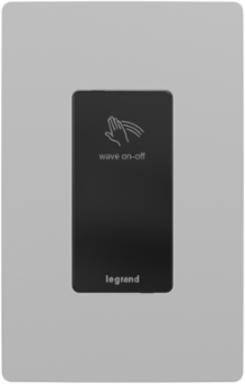

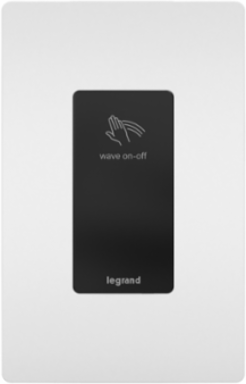

- Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection
Documentation & Downloads
Specifications
Key Specifications
| Depth | 1.03 in |
|---|---|
| Height | 4.2 in |
| Load Type | CFL |
| Load Type | LED |
| Amperage | 20.0 A |
| Switch Type | Wave |
| Number of Gangs | 1 |
| Voltage | 120/125 V |
| Load Type | Universal |
| Load Type | Fluorescent |
| Load Type | Incandescent |
| Number of Switches | 1.0 |
| Features | Decorator Style |
| Special Features | Touchless |
| Application Sector | Residential |

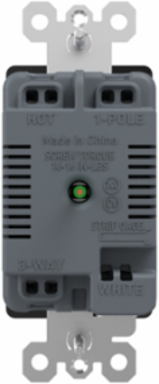

| Connection Location | Back and Side |
| Warranty Type | 1-Year Limited Warranty |
| Jigsaw Channel Availability | Distribution |
| Wire Connection Type | Internal Pressure Plates |
| Finish | Satin |
| Product Line | Pass & Seymour |
| Type | Switch |
|---|---|
| Width | 1.72 in |
| Country of Origin | China |
| Type | Decorator |
| Load Type | Xenon |
| Load Type | Halogen |
| Seismic Tested | No |
| Features | Touchless |
| Indoor/Outdoor | Indoor |
| Number of Poles | 3-Way |
| Mounting Type | Wall Box |
| Wall Plate Included | No |
| Requires Neutral Wire | Yes |
| Number of Poles | Single Pole |
| Load Rating | 20 A @ 120/125 VAC |
| Jigsaw Channel Availability | Retail |
| Horsepower Rating | 3/4 HP @ 120/125 VAC |
| Terminal Accommodation | #14 AWG - #12 AWG |
| Color | Black |
| Material | Thermoplastic |
