Pass & Seymour CSWV1277 Pass & Seymour 277V Wave Switch
- MPN: CSWV1277
- UPC: 785007449495
- PPN: P-S-CSWV1277
CAD
$92.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

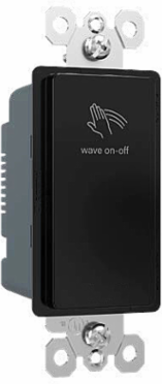

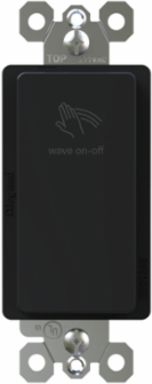

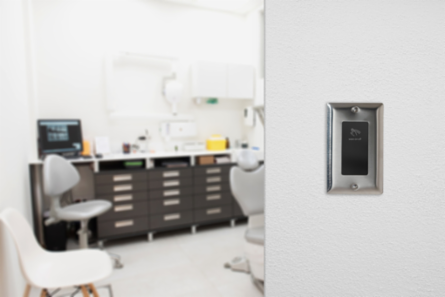

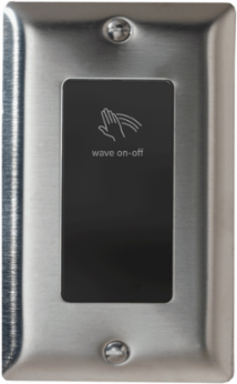

The Pass & Seymour 277V Wave Switch lets users turn lights on or off with just the wave of a hand, providing a germ-and-worry-free, touchless solution. From hospital clinics to hotel conference rooms to commercial offices, creating cleaner spaces starts with cleaner control. Features an adjustable range to sense movement from 1/2-inch to 4-inches in front of the switch.
Features
- Chemical and impact-resistant Copolymer cover for easy-to-clean design
- Surge protection extending product longevity and withstanding common building daily surges
- Touch-free solution offers enhanced convenience and reduction in spread of germs

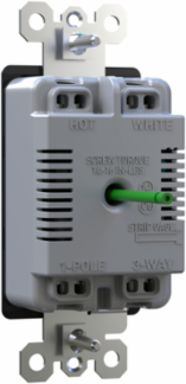

- Back-wire pressure plate terminations for easy installation and time-savings
- Rated for 1/4 HP for control of small motor loads at 10a 120v & 277v
Documentation & Downloads
Specifications
Key Specifications
| Depth | 1.67 in |
|---|---|
| Standard | UL |
| Type | Switch |
| Weight | 0.216 lb |
| Standard | RoHS |
| Country of Origin | Vietnam |
| Switch Type | Wave |
| Number of Gangs | 1.0 |
| Mounting Type | In-Wall |
| Number of Switches | 1.0 |
| Standard | REACH Compliant |
| Requires Neutral Wire | Yes |
| Number of Poles | Single Pole |
| Connection Location | Back Only |
| Wire Connection Type | Wire Terminal |
| Operating Temperature Max | 40.0 °C |
| Terminal Accommodation | #14 AWG - #12 AWG |
| Finish | Matte |
| Product Line | Pass & Seymour |
| Height | 4.2 in |
|---|---|
| Length | 4.2 in |
| Standard | cUL |
| Width | 1.63 in |
| Standard | cULus |
| Amperage | 10.0 A |
| Voltage | 120/277 V |
| Indoor/Outdoor | Indoor |
| Number of Poles | 3-Way |
| Wall Plate Included | No |
| Features | Impact Resistant |
| Features | Chemical Resistant |
| Application Sector | Commercial |
| NEMA Rating | NEMA WD-1 and WD-6 |
| Warranty Type | 1-Year Limited Warranty |
| Operating Temperature Min | -40.0 °C |
| Color | Black |
| Material | Polycarbonate |
| Operating Temperature | -40°-40°C |
