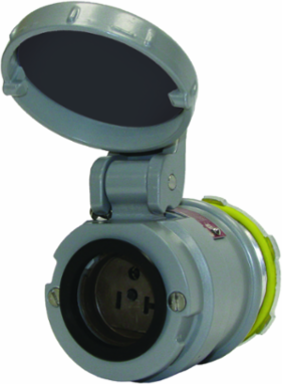

Killark UGRP-20231FQW 20A 125V Acceptor Panel Receptacle, Delayed Action, 3 Wires, Factory Sealed
- MPN: UGRP-20231FQW
- UPC: 783936124445
- PPN: HBL-UGRP-20231FQW
CAD
$1831.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
20A 125V Acceptor Panel Receptacles with Flip Style Cap, Quick-Wire
Features
- Available with Exclusive Breech-Lock Lid
- Patented lid notch allows for screwdriver, etc. to hold open lid for easier, two-hand installation.
- Factory Sealed Construction
- Copper-free aluminum (less than 4/10 of 1%) alloy resists corrosion
- Electrostatically applied and baked powder epoxy/polyester finish
- Dead Front Construction with Integral Switch – requires Hazardous Rated NEMA-Bladed Plug for operation
- The ACCEPTOR® UGRP-QW Panel Mount Receptacle complements the UGR-QW receptacle line. Used with ACCEPTOR® plugs, UGRP-QW Panel Mounted Receptacles provide local power for hazardous location rated portable equipment such as handlamps (mounted into a corresponding enclosure). Units are suitable for Class I Div. 1 or Class I Div.2 depending on the enclosure type used. UGRP-QW Panel Mounted Receptacles are classified for use with other NEMA bladed-type explosion-proof and dust ignition devices. Factory sealed construction specifies that no additional external seals are required (except in Group B applications).
Specifications
Key Specifications
- Country of Origin
- United States
- Amperage Rating
- 20 A
- Number Of Poles
- 2
- Type
- Straight Blade
- Class Code
- D35
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- D35D261
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Series
- UGRP Series
- BOX SIZE
- (in)
- NAICS Code
- 335931A102
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups F, G;Class III, Divisions 1 & 2
Nema Rating3, 4, 4X, 7(B, C, D), 9(F, G)
Number Of Wires3
ARRA CompliantContact Manufacturer
Description - InvoiceACCEPTOR PANEL 20A 125V FLIP QW
Harmonization Code8536694020
MSDS FlagNo
Factory SealedFactory Sealed
Receptacle TypeDelayed Action
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936124445
