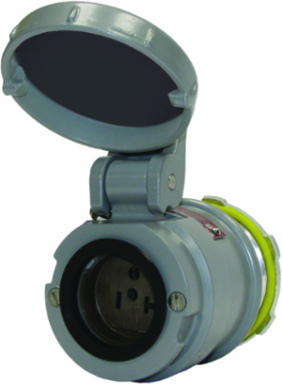

Killark UGRP-20232FQW 20A 250V Acceptor Panel Receptacle, Factory Sealed, Aluminum, 3 Wires
- MPN: UGRP-20232FQW
- UPC: 783936124834
- PPN: HBL-UGRP-20232FQW
CAD
$1831.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
20A 250V Acceptor Panel Receptacles with Flip Style Cap, Quick-Wire
Features
- Available with Exclusive Breech-Lock Lid
- Patented lid notch allows for screwdriver, etc. to hold open lid for easier, two-hand installation.
- Factory Sealed Construction
- Copper-free aluminum (less than 4/10 of 1%) alloy resists corrosion
- Electrostatically applied and baked powder epoxy/polyester finish
- Dead Front Construction with Integral Switch – requires Hazardous Rated NEMA-Bladed Plug for operation
- The ACCEPTOR® UGRP-QW Panel Mount Receptacle complements the UGR-QW receptacle line. Used with ACCEPTOR® plugs, UGRP-QW Panel Mounted Receptacles provide local power for hazardous location rated portable equipment such as handlamps (mounted into a corresponding enclosure). Units are suitable for Class I Div. 1 or Class I Div.2 depending on the enclosure type used. UGRP-QW Panel Mounted Receptacles are classified for use with other NEMA bladed-type explosion-proof and dust ignition devices. Factory sealed construction specifies that no additional external seals are required (except in Group B applications).
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Amperage Rating | 20 A |
| Number Of Poles | 2 |
| Type | Straight Blade |
| Class Code | D35 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | D35D261 |
| Factory Sealed | Factory Sealed |
| Receptacle Type | Delayed Action |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783936124834 |
| Hazardous Rating(s) | Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups F, G;Class III, Divisions 1 & 2 |
|---|---|
| Nema Rating | 3, 4, 4X, 7(B, C, D), 9(F, G) |
| Number Of Wires | 3 |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | ACCEPTOR PANEL 20A 250V FLIP QW |
| Harmonization Code | 8536694020 |
| MSDS Flag | No |
| Buy America(n) Qualified | Contact Manufacturer |
| Material | Aluminum, Copper Free (less than 4/10 of 1%) |
| Series | UGRP Series |
| BOX SIZE | (in) |
| NAICS Code | 335931A102 |
